Add-A-Circuit Fuse Holder

High quality & compact size Add-A-Circuit ATC/ATO/ATM blade style fuse adapter!

It simply turns one fuse slot into TWO. Just plugs into fuse block to provide protection for both existing and the add-on circuit. This ingenious device allows quick and easy installation of additional circuits or electronic accessories without any cutting and splicing.

Does not come with a fuse. Looking for the ATC fuses for this holder? Click here.

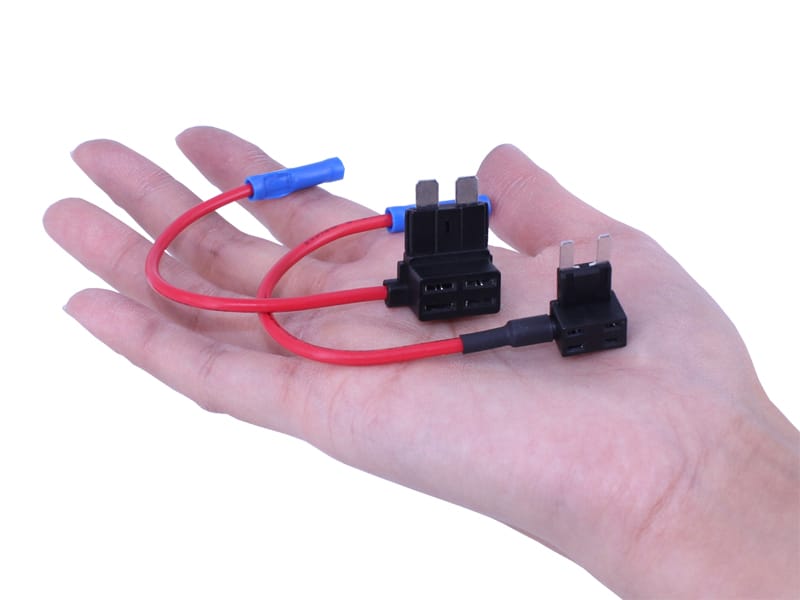

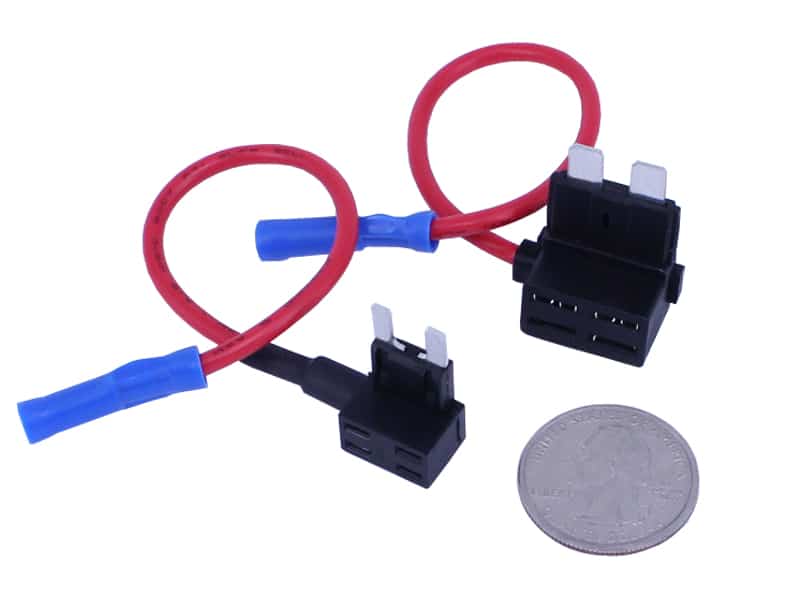

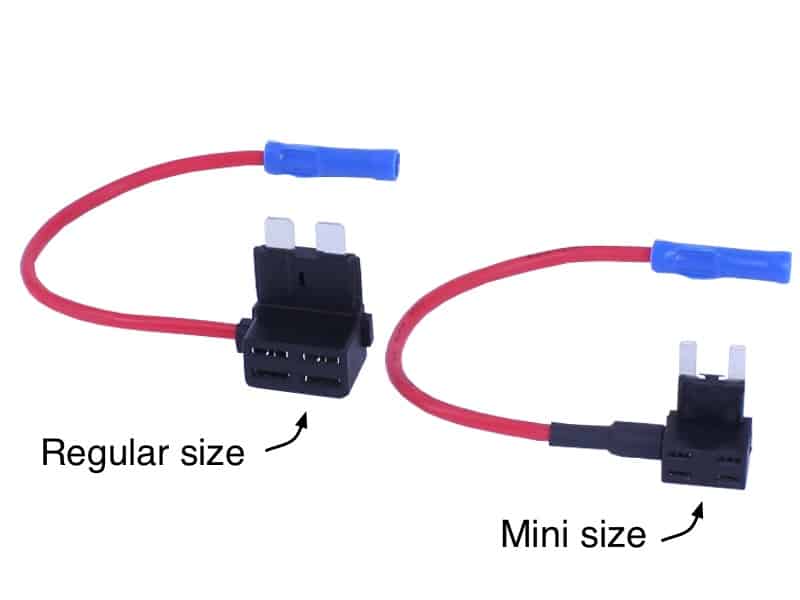

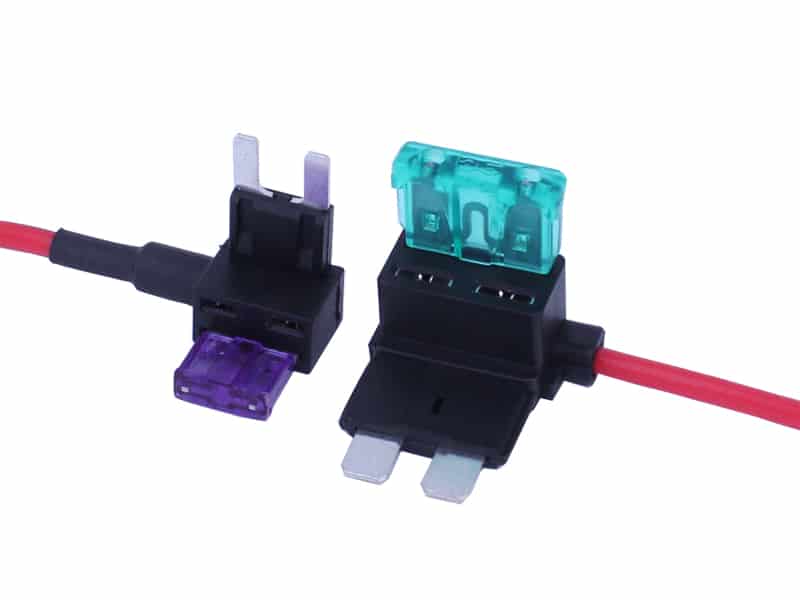

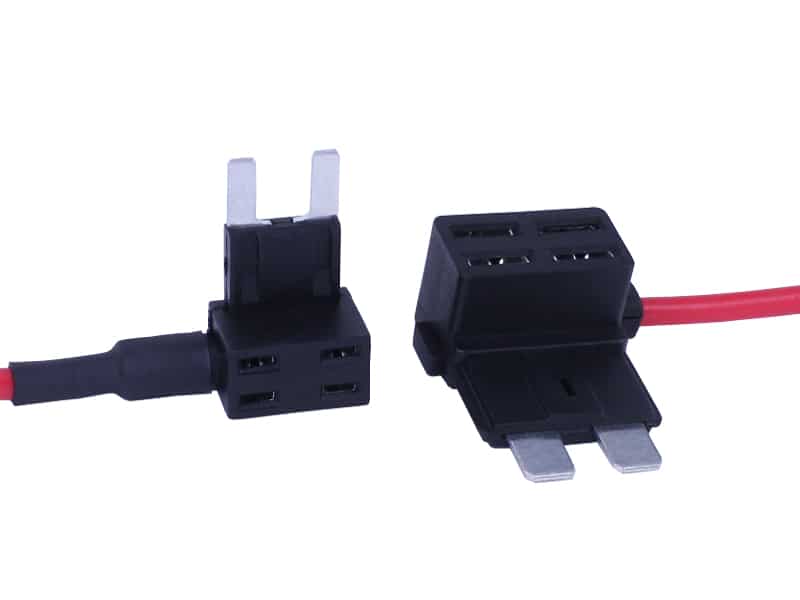

2 sizes of fuse adapters

Add-a-circuit fuse adapter

Add-A-Circuit Fuse Holder Photos

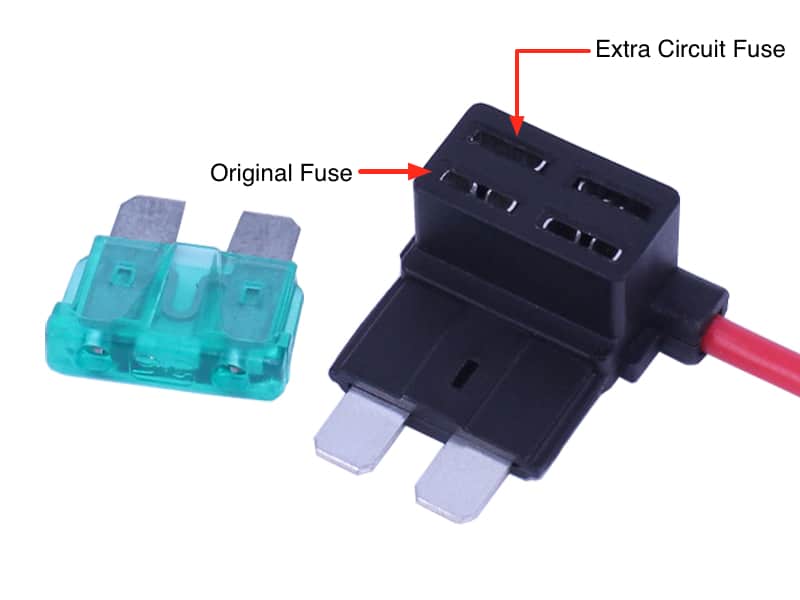

Original circuit extra fuse holder expand

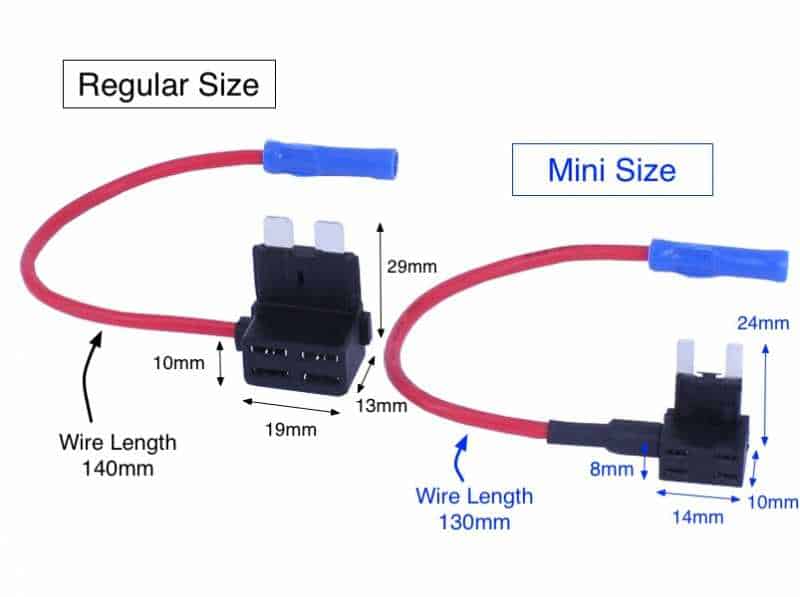

Add-A-Circuit Fuse Holder Technical Info

Regular size

Dimension: 19(L) x 13(W) x 29(H) mm
Wire size: 16 gauge
Wire length: 140mm (5.5 inches)
Fuse type: For blade type ATC / ATO fuses

Mini size

Dimension: 14(L) x 10(W) x 24(H) mm
Wire size: 16 gauge
Wire length: 130mm (5.1 inches)
Fuse type: For blade type ATM fuses

In stock

Style

Quantity

$5.79

Customer questions & answers

Question:

The add a fuse appears to be a single wire. My under dash led is currently plugged into a “cigarette” outlet. Wanted to add a fuse from fuse box to power lights, but the lights have a double wire. How tap the single add fuse to the double light wire?
Thanks!

Answer:

You need to tap the positive wire from his under dash led to the add-a-circuit fuse, then tap the negative wire to the battery ground or chassis ground

Question:

What is the max amperage for these units? - by Richard (United States)

Answer:

The Add-A-Circuit Fuse Holder essentially taps directly into a wire running from the battery to the fuse block. The amperage would be controlled by the number of leds you are using and the fuse to correspond with this.

Question:

is the connector waterproof? i want to use for led's in grille and this will go into the fuse box to power them. - by Kelly (West Bloomfield, MI)

Answer:

Yes.

See more answered questions (9)
