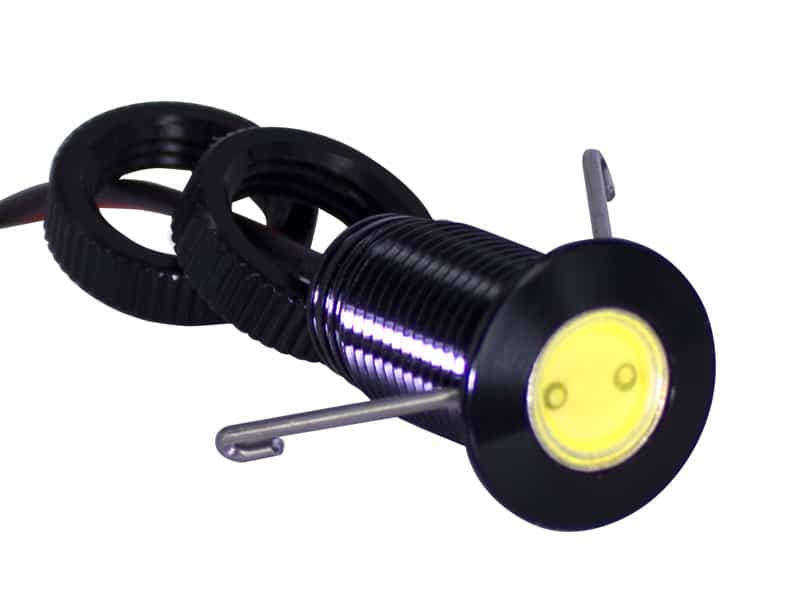

This new version of our popular 11mm diameter LED Bolt offers two mounting methods:
1) Snap fit with spring loaded retaining clip
-or-
2) Nuts
With the Snap Fit feature, you can easily install the LED bolt in places where you can't access the back to screw on nuts. For example walls, floors, ceilings, decks, etc.
It is 1 watt, Cool White, with a Black Aluminum housing, and no lens (so a wide angle flood light beam).
Super easy to install, with 2 methods of installation:

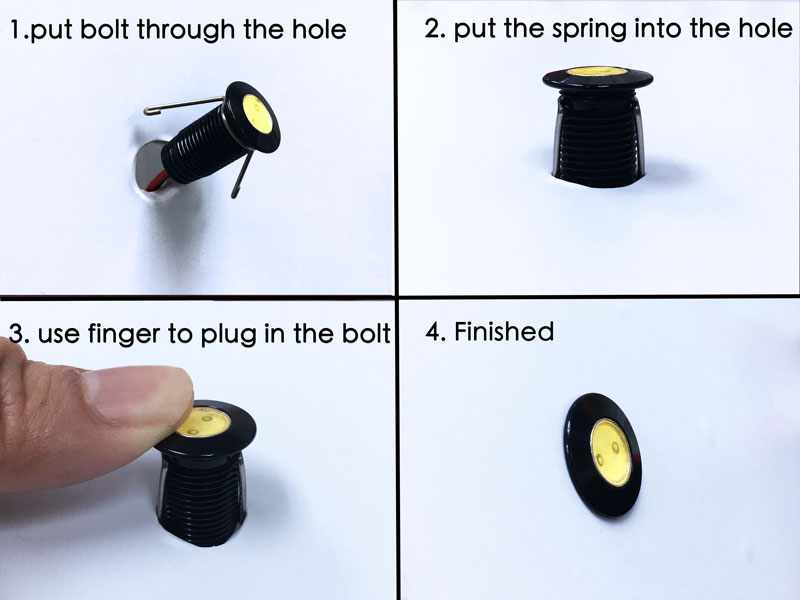

1) Drill 12mm hole, and snap fit from the front. (Be careful when pushing into hole, don't press directly on the top of the bolt, that could damage the LEDs).

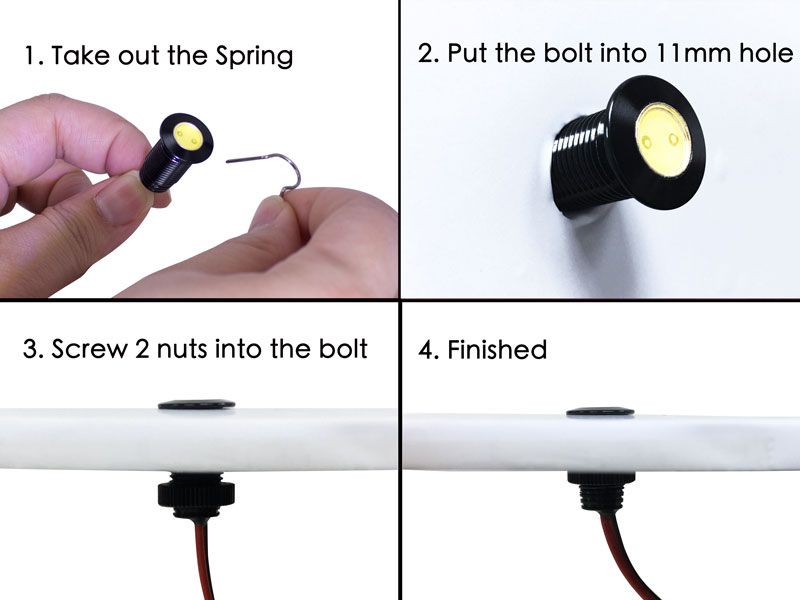

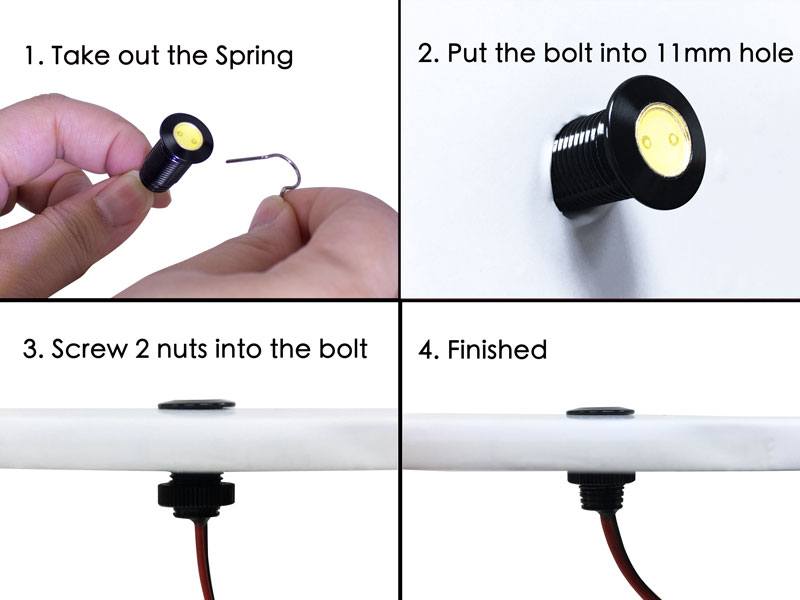

2) Drill hole, and mount with nuts from the back: 11mm
For now we're just offering this LED bolt with a single color configuration, but if you'd like other colors, please let us know.

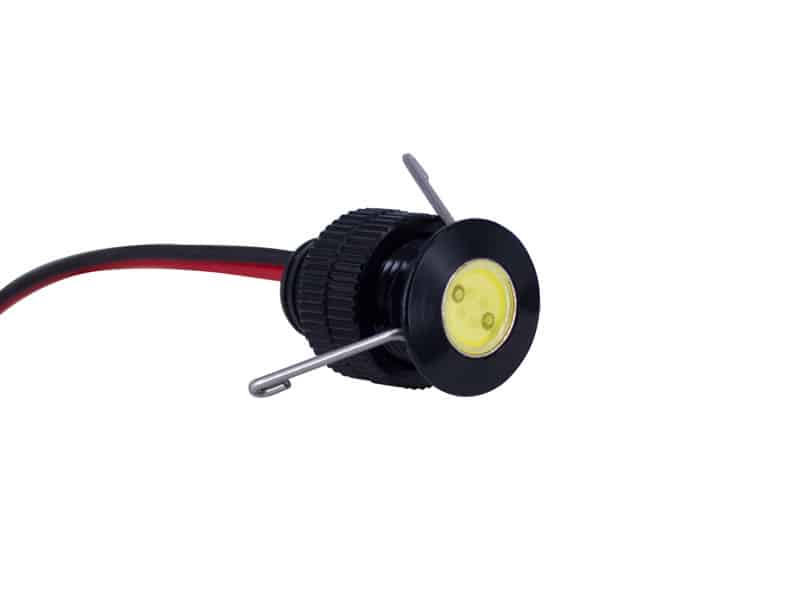

Flush Mount LED Bolt - Snap Fit Version
Snap Fit LED Bolt Technical Info
Cool White
Current (mA): 40
Luminous Flux (lumens): 18.4
Color Temperature : 9000K +
Drawing for Snap Fit bolt
- Download Dimension drawing spec sheets:
Snap Fit LED Bolt
Customer questions & answers
What is the IP rating?
IP 68, fully waterproof.
What is the temperature range these LEDs can handle? I'm looking for underhood lighting.
They can be used under a car hood, just not near a very hot heat source. The can generally handle up to 158 degrees.
PLEASE PLEASE PLEASE make this in other standard colors ASAP!!!!!! (or at least in yellow, red, green and blue.)
We can do that if you need large quantities like 200.
