Bright & Small LED Modules for Cabinet & Vehicle

Name: LED Modules
Brand: Oznium
SKU: P173
Price: 8.99 USD
Availability: InStock
Rating: 4.7 (43 reviews)

(43 reviews)

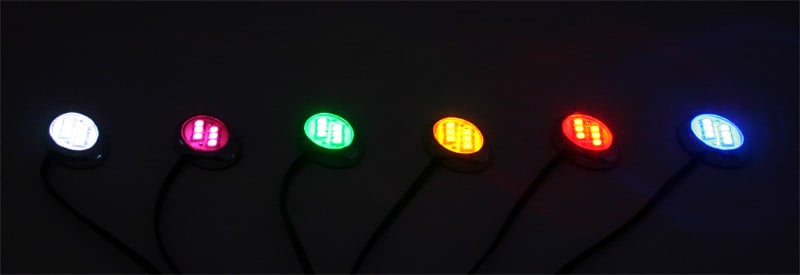

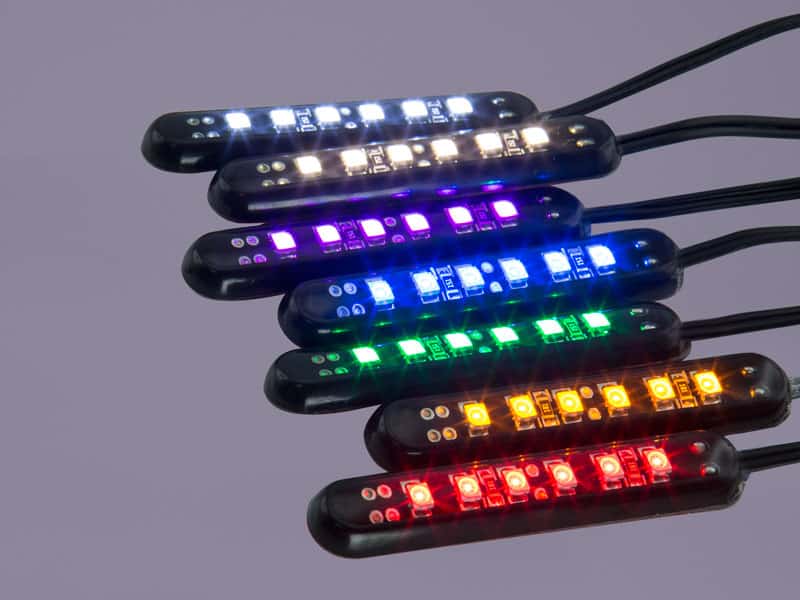

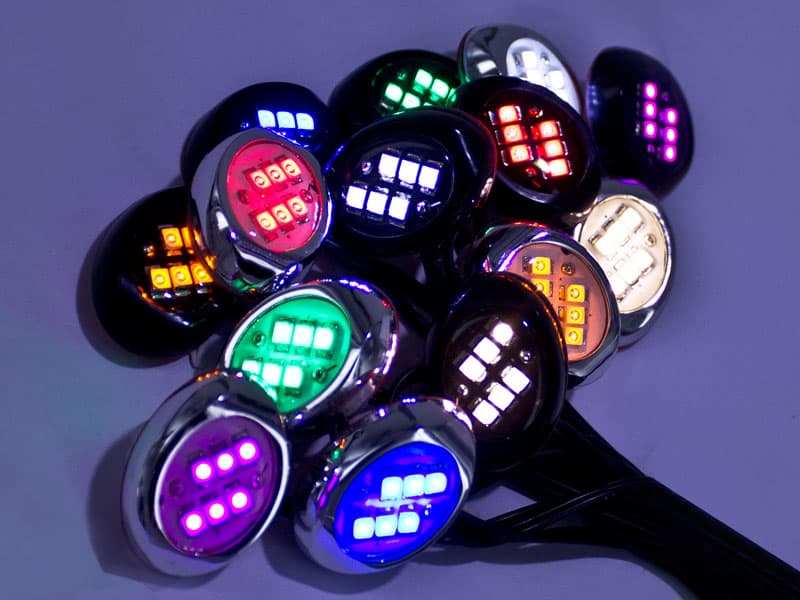

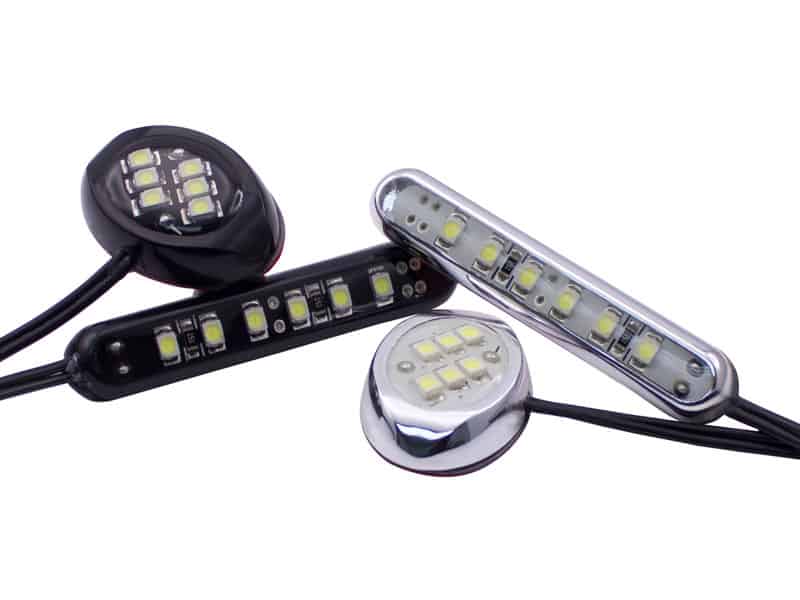

Available in straight or round, with a black or chrome bezel, and six light colors, these tiny LED modules give off a tremendous glow.

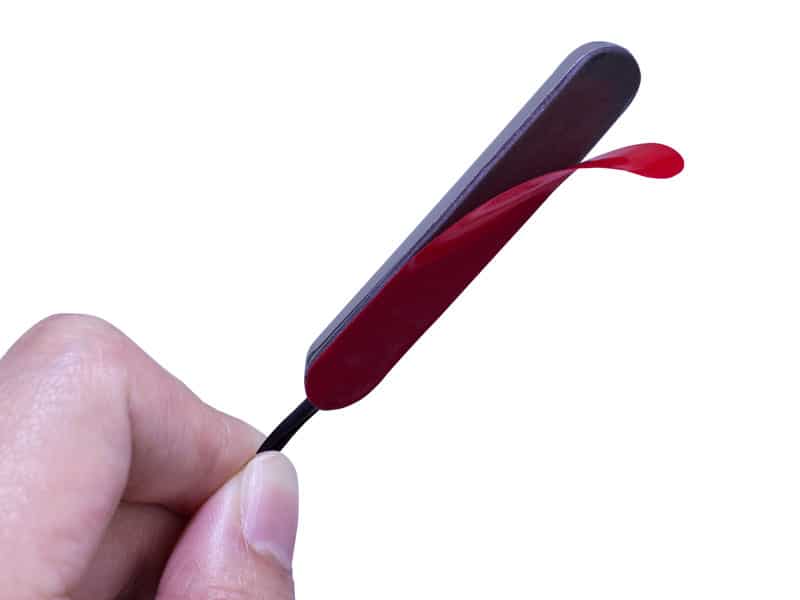

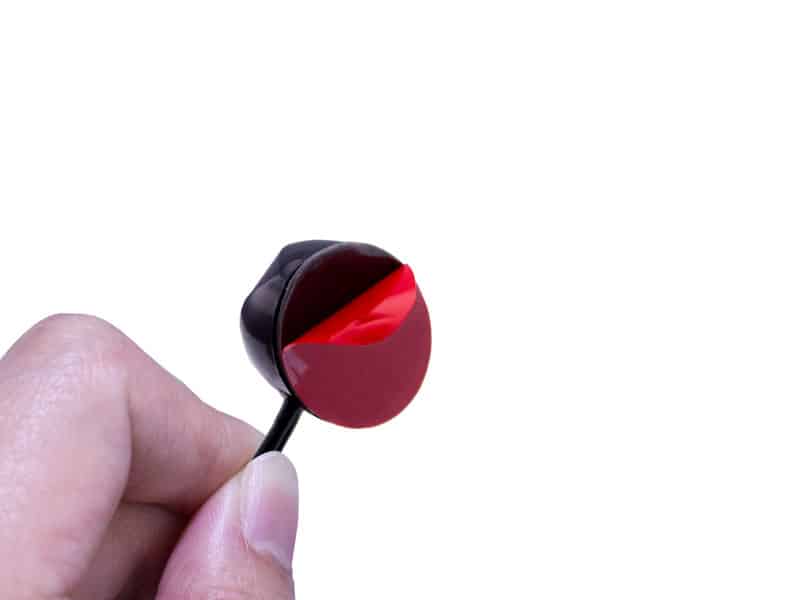

Like an LED puck light, they are perfect around the house or in the car. These tiny wonders are fully waterproof, can be mounted with the included 3M adhesive, and easily hook up to any 12 volt power source.

A discrete, yet sleek, lighting solution, the LED modules work great both tucked away or directly visible.

They are ready to work on any 12 volt system. Just hook up the red wire to positive and the black to negative (ground).

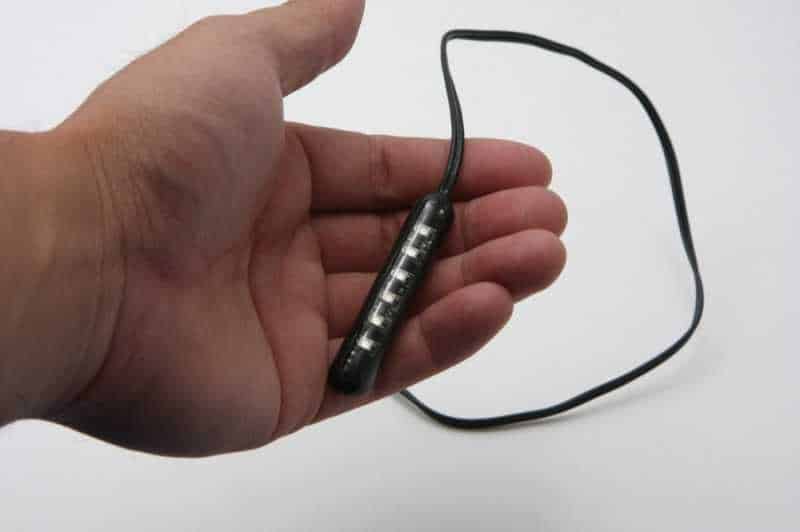

Each module uses 6 PLCC-2 style surface mount LEDs with a wide, 110 degree viewing angle.

Other applications:

You are currently viewing Automotive applications for our LED Modules.

We also recommend this product for:

LED Modules Photos

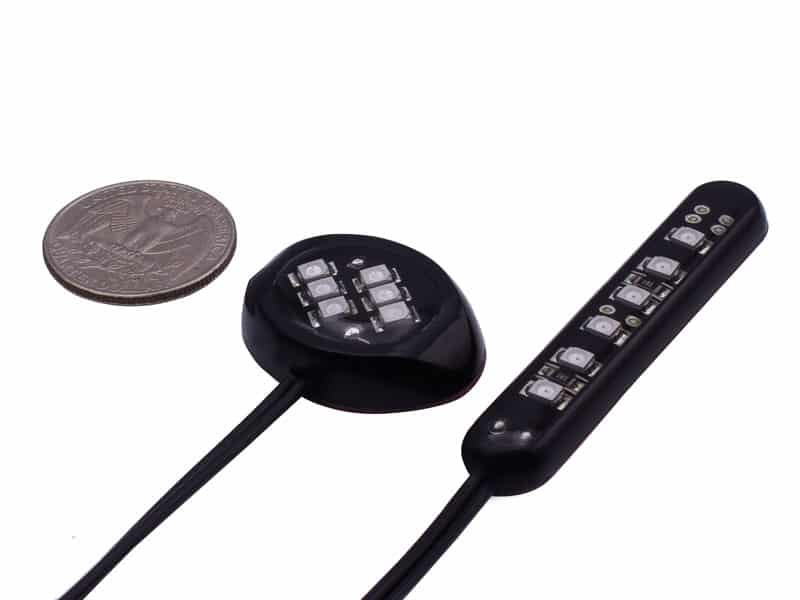

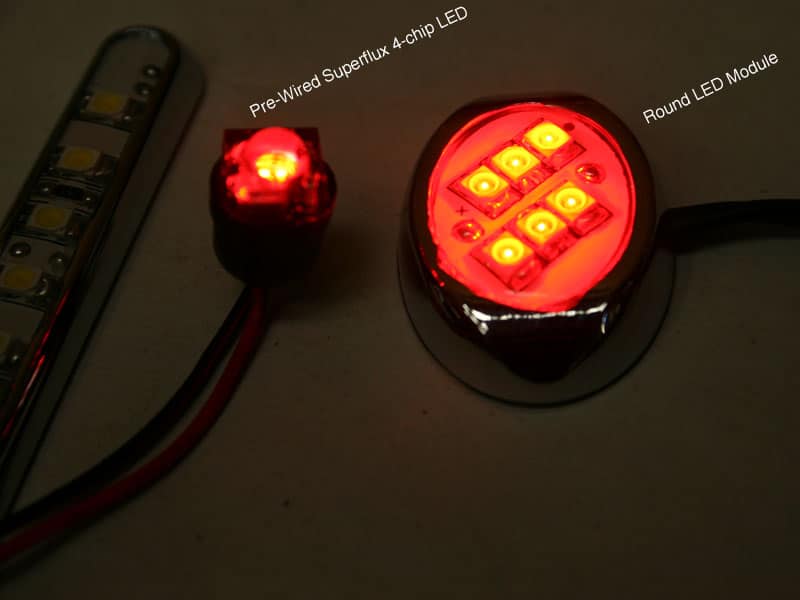

Led module Round & Straight &Coin Compare

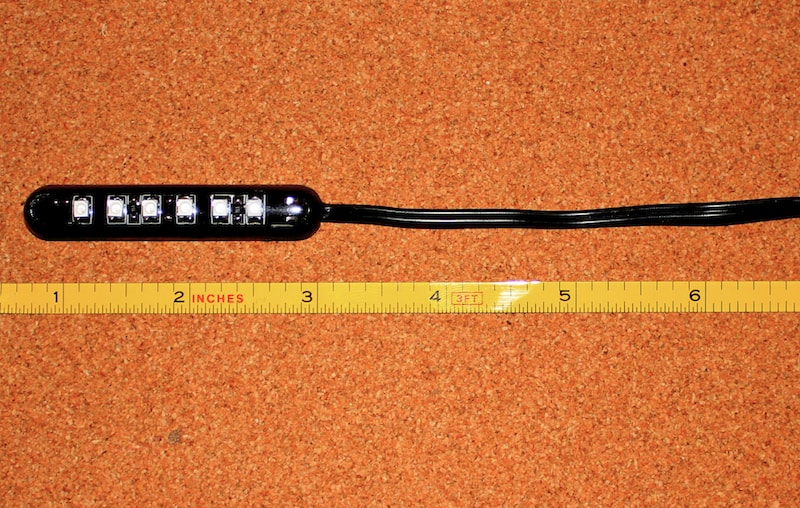

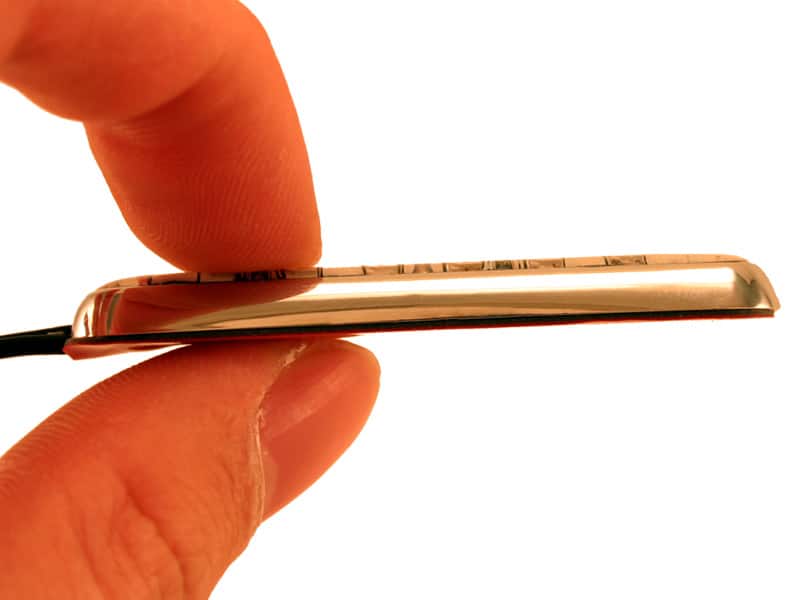

Side measurement of the straight black rectangular super bright LED module.

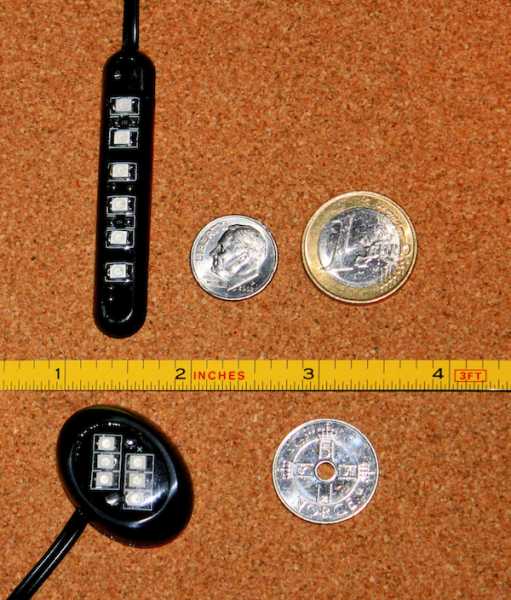

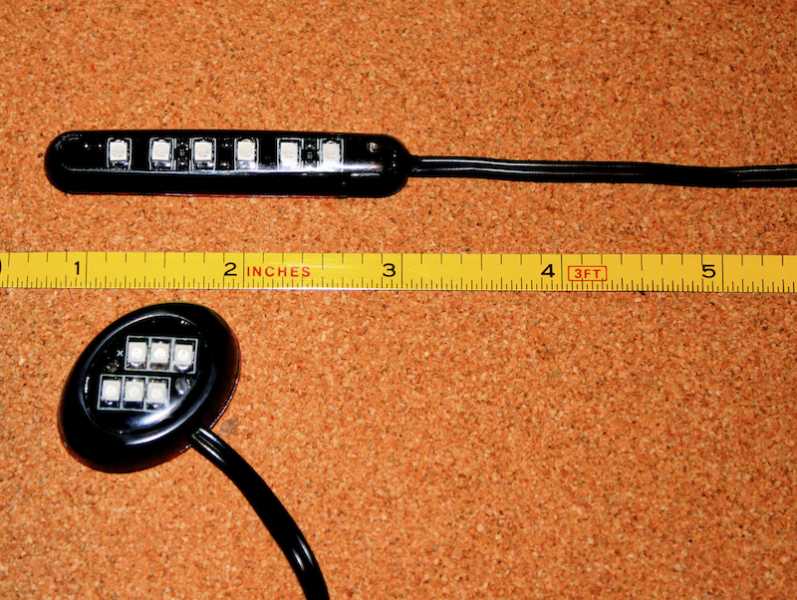

Comparison of length measurements of the Black Straight & Round LED Modules.

Comparison of side measurements of the Black Straight & Round LED Modules.

US Dime, Euro, and Kroner included for scale.

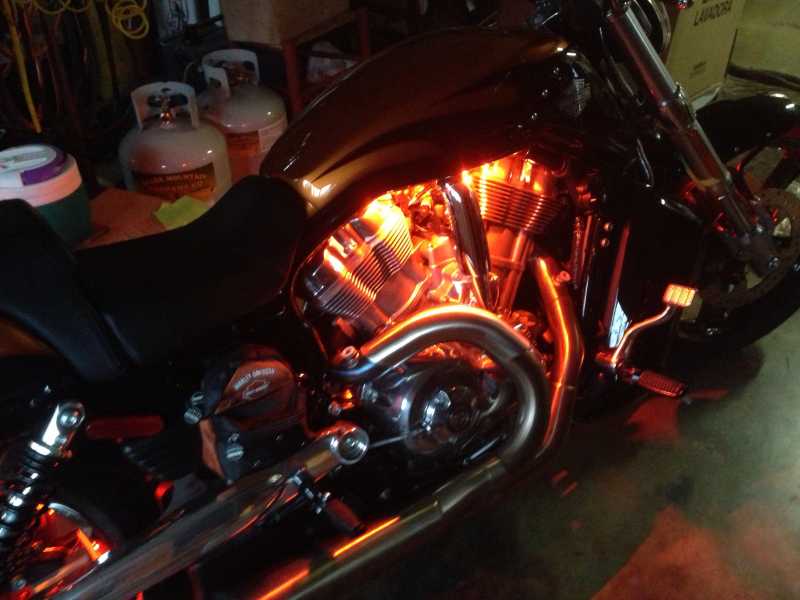

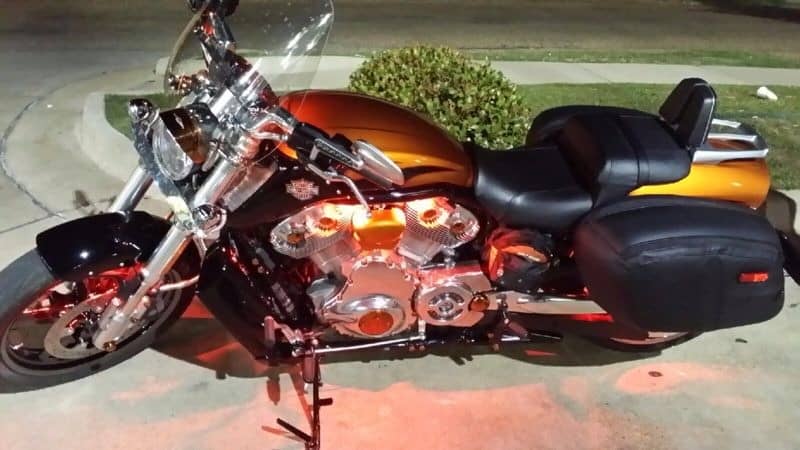

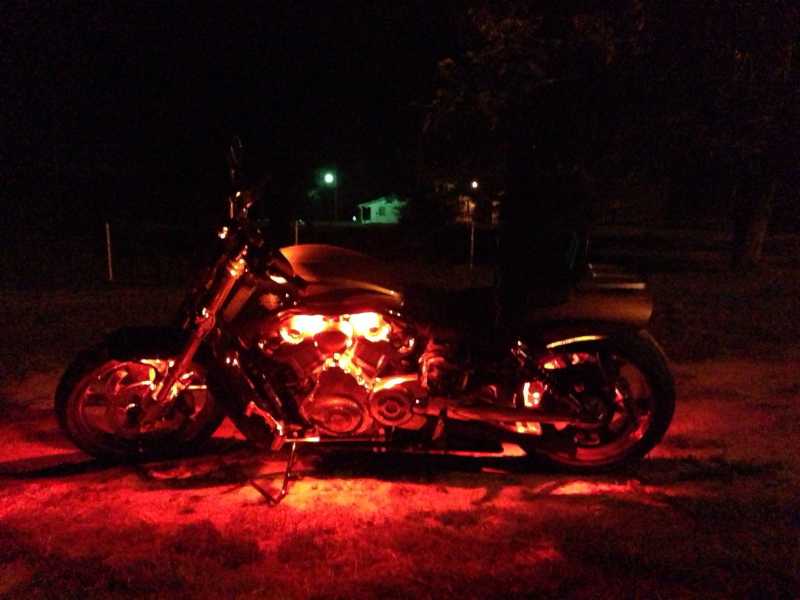

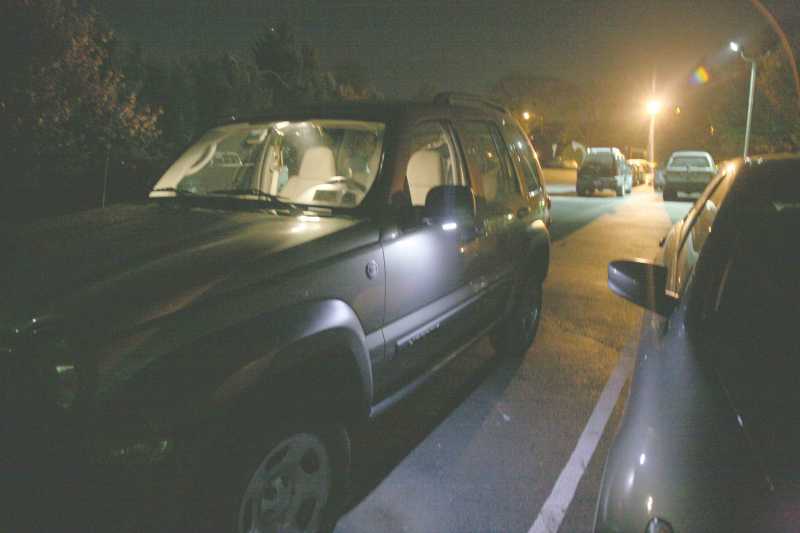

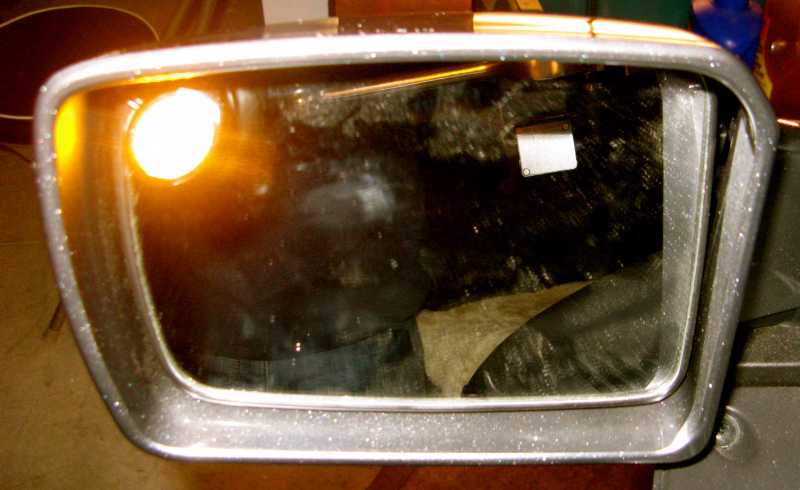

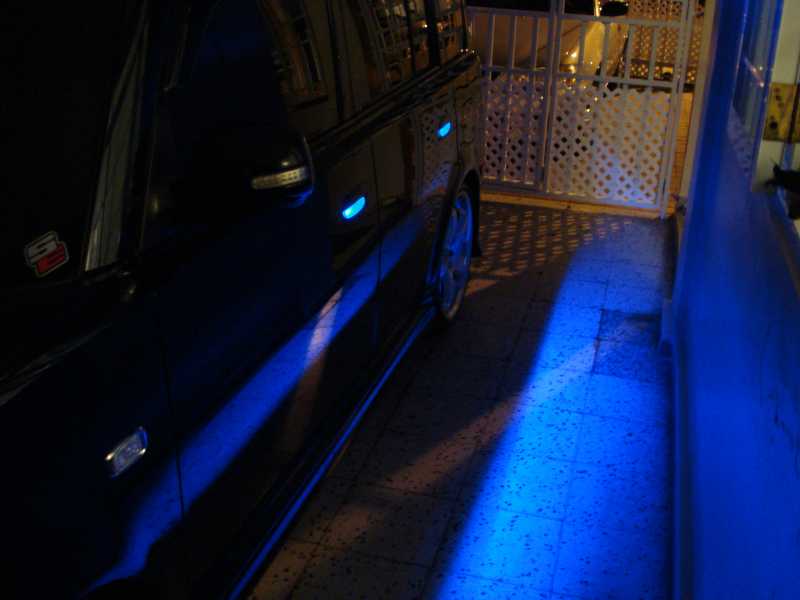

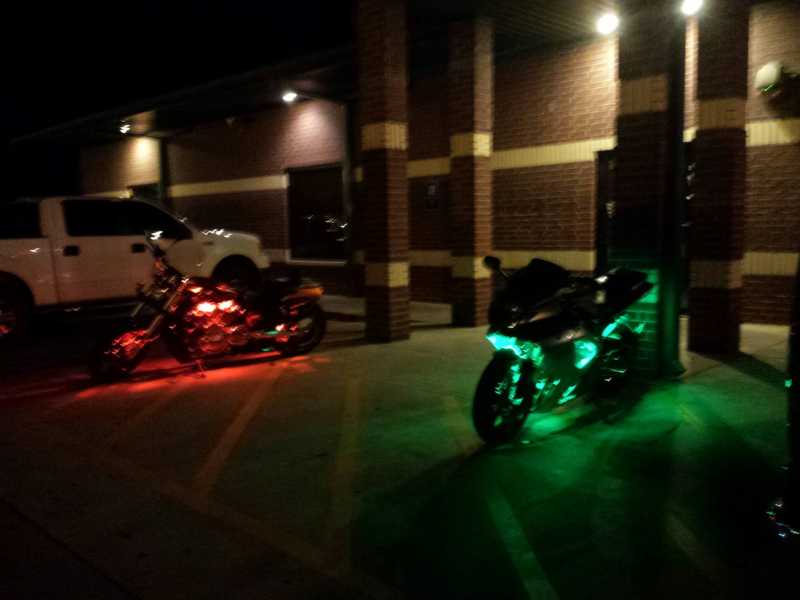

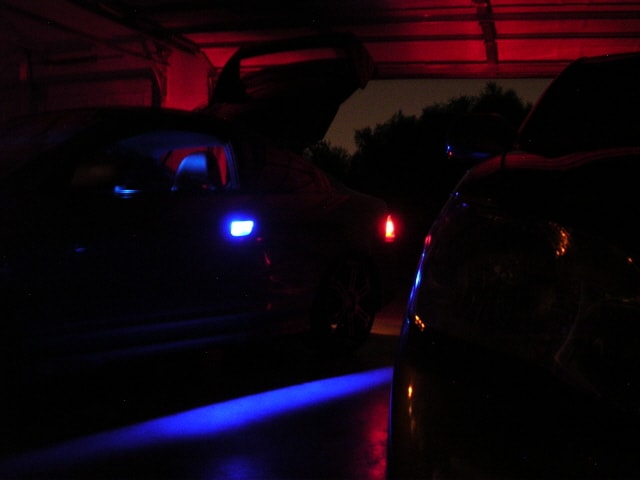

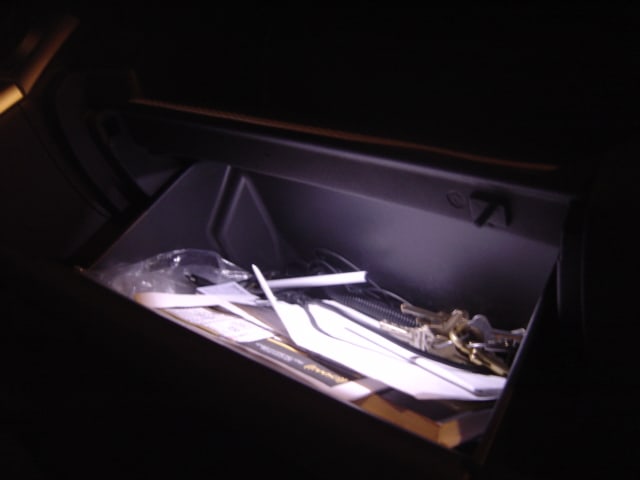

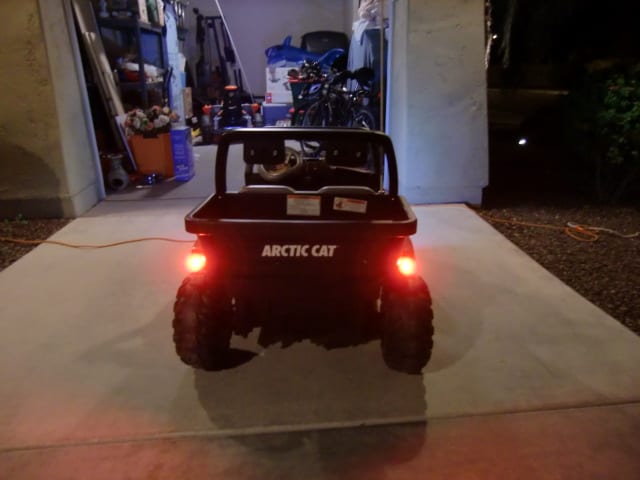

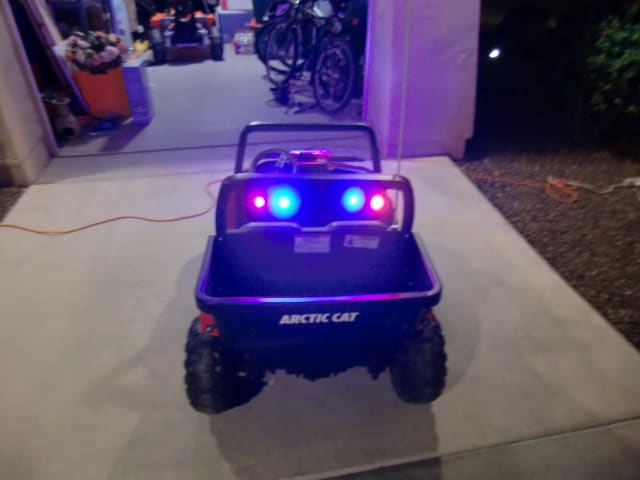

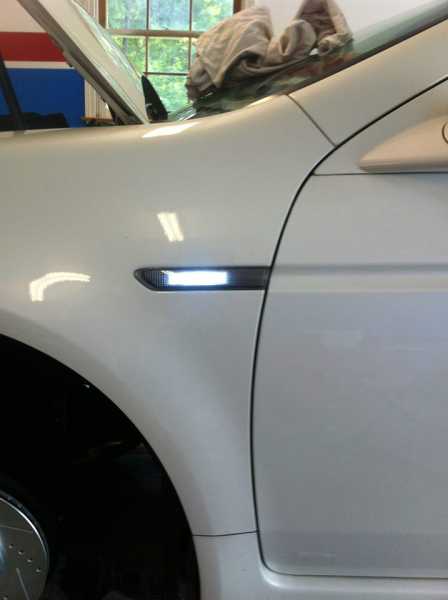

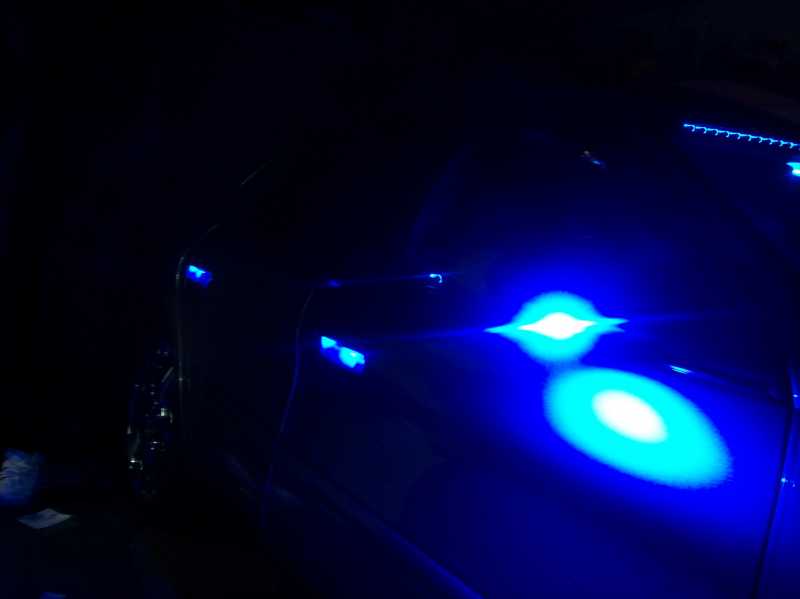

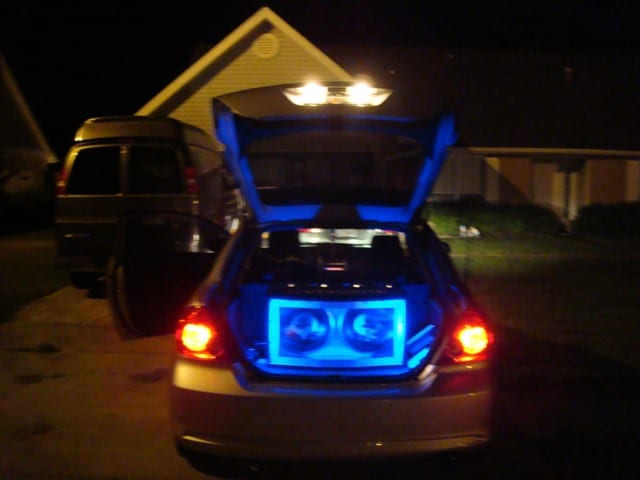

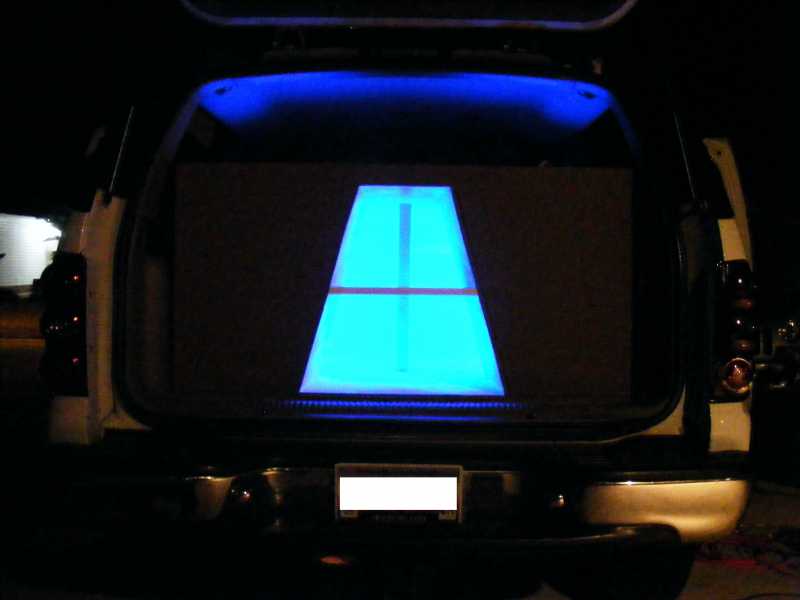

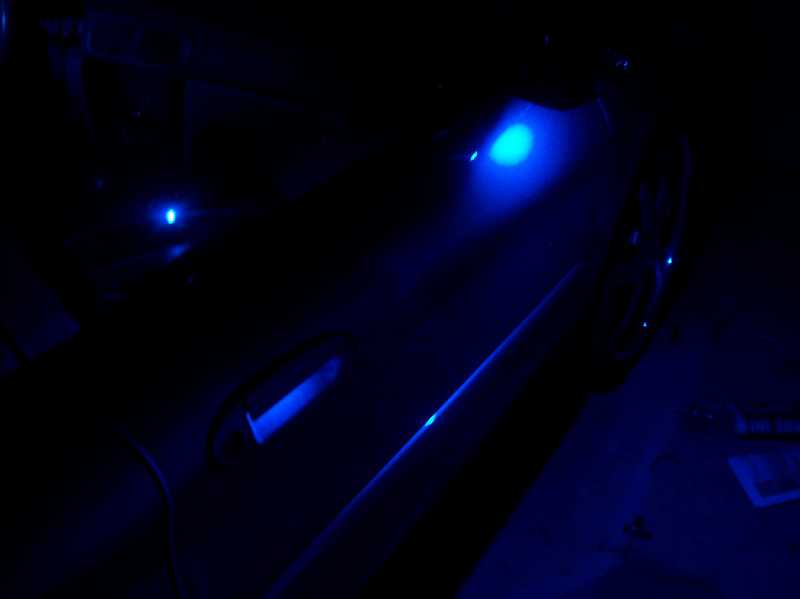

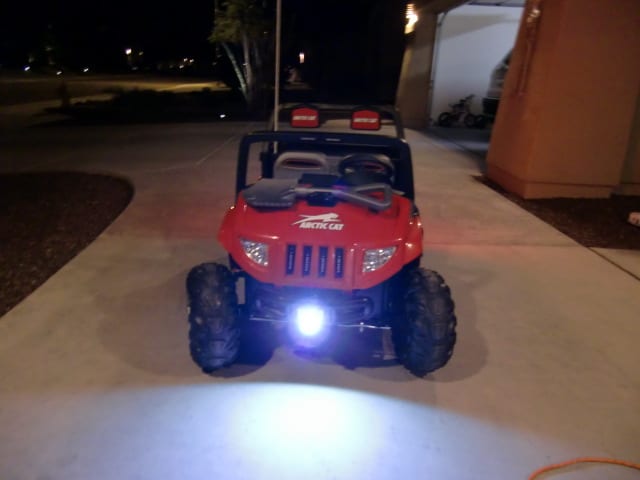

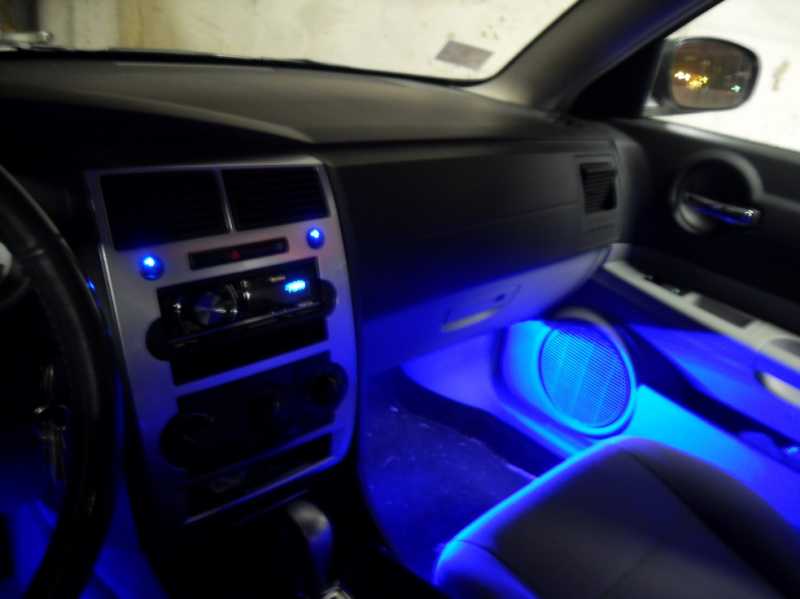

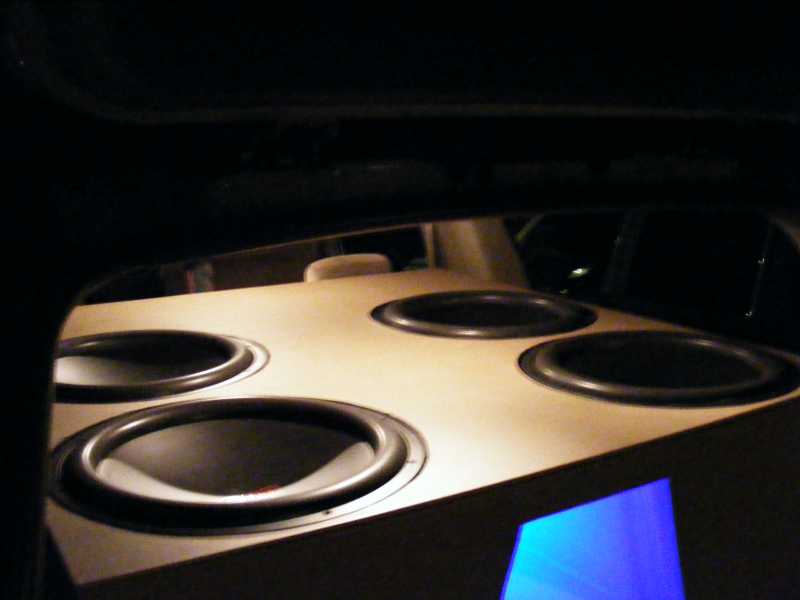

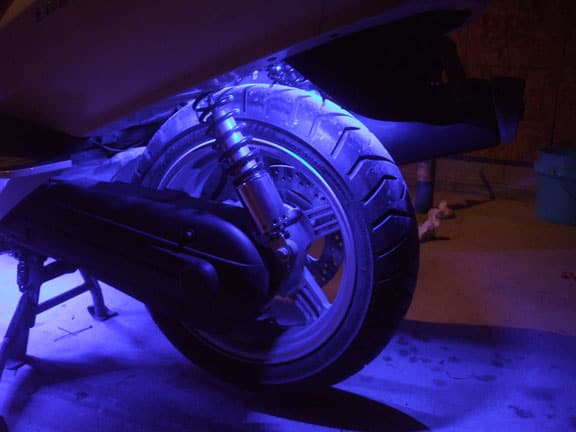

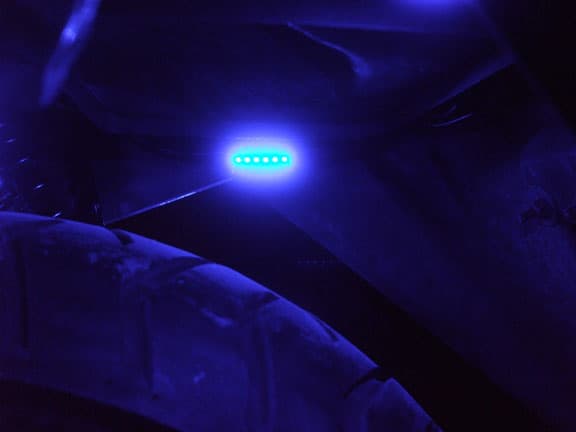

Action Shots

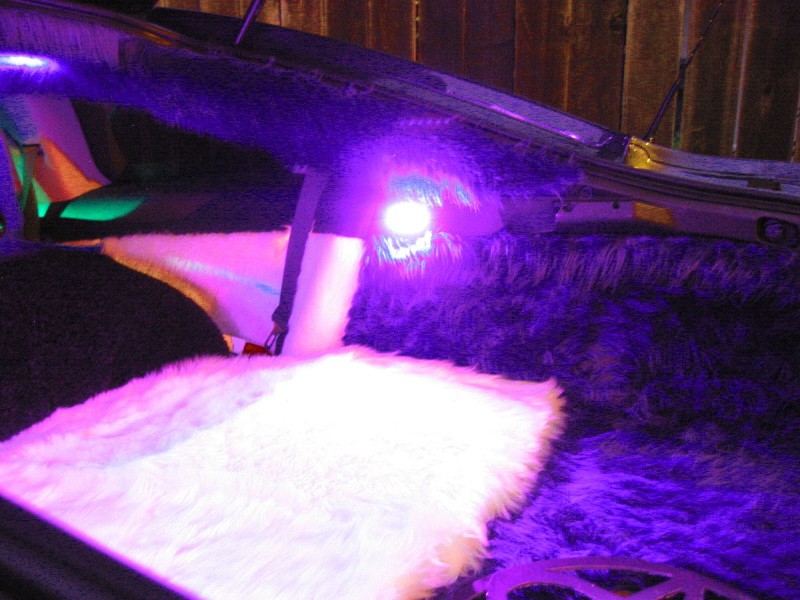

LED Modules Pink LED Module on both sides of hatch area - Scion tC

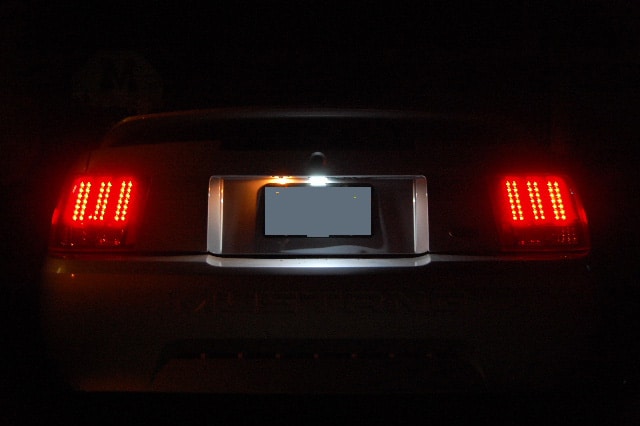

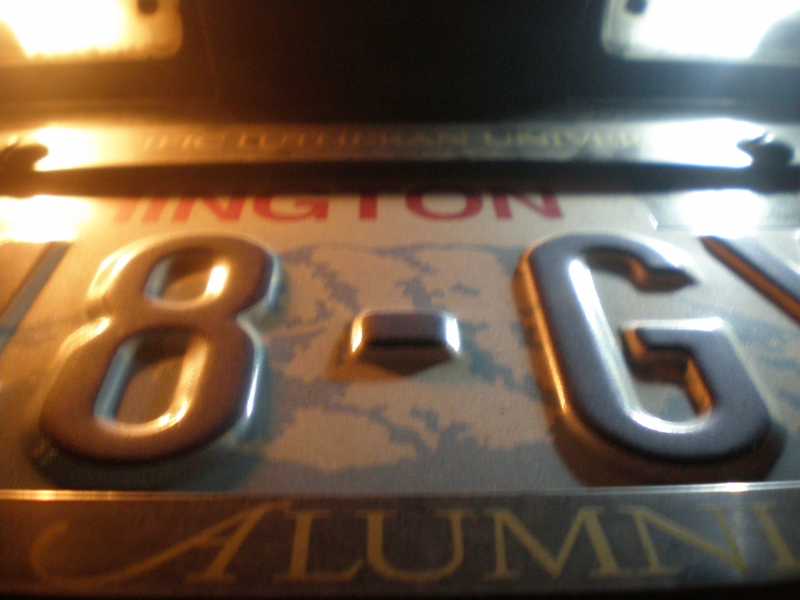

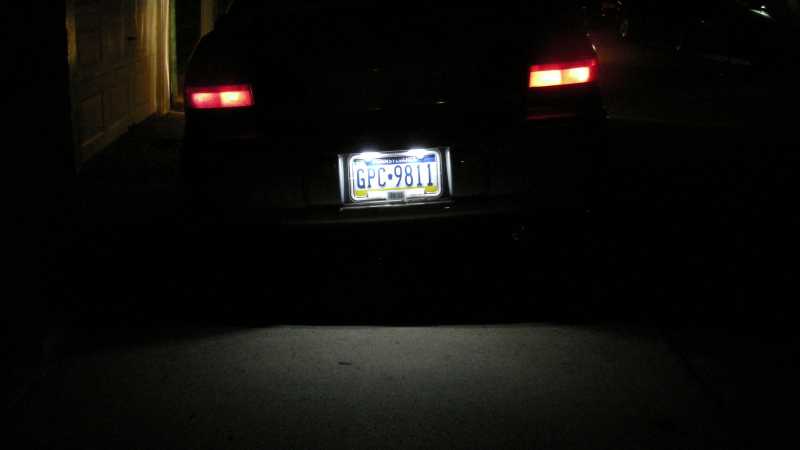

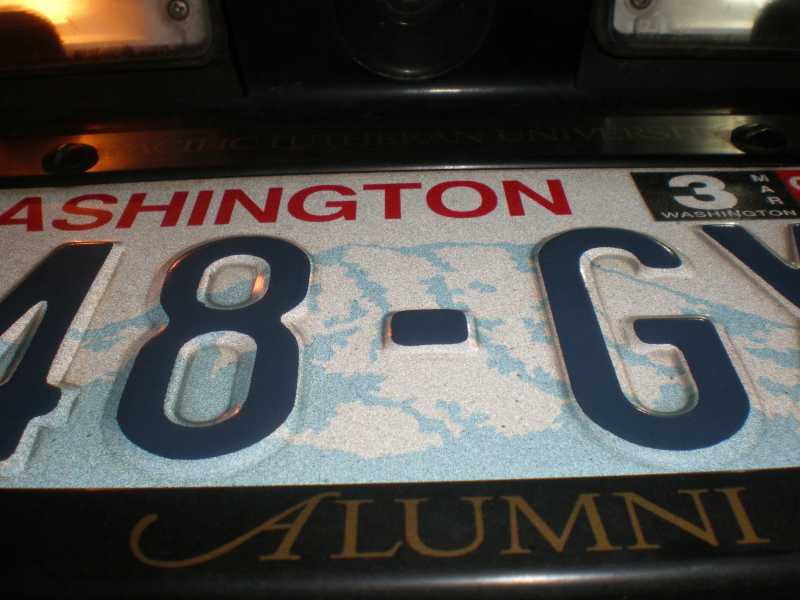

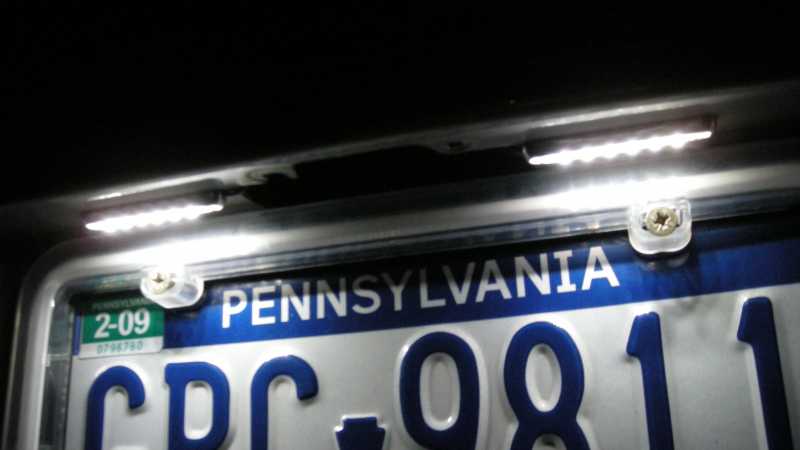

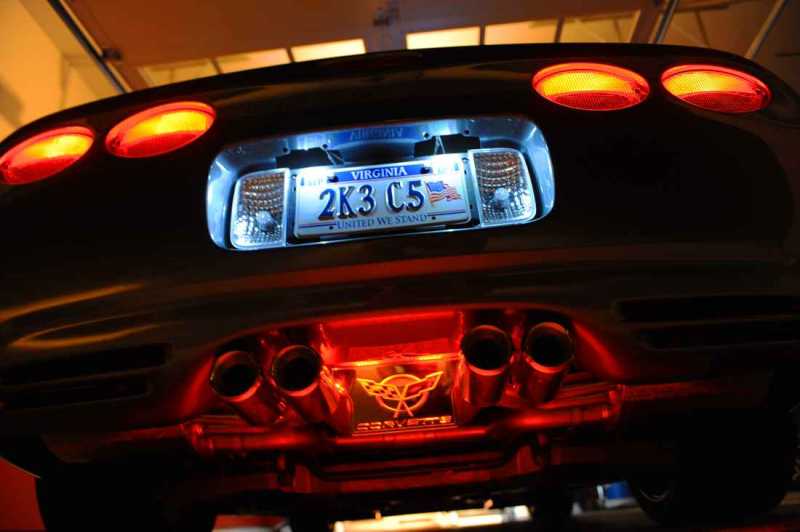

LED Modules 2 Straight Led Modules to replace stock Liscense plate lights on a 96' Ford Thunderbird. VERY BRIGHT !!! And produces the crisp light you want !

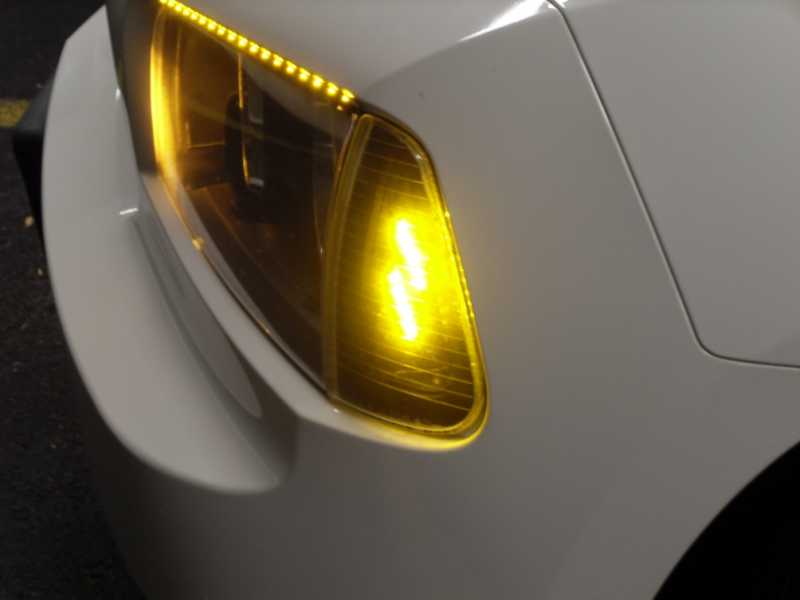

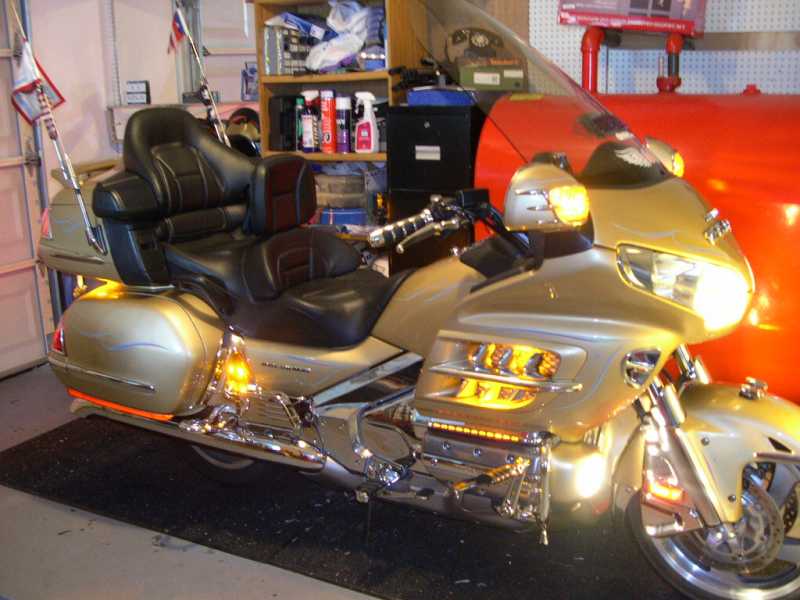

LED Modules Yellow Chrome LED modules on 2006 Honda Goldwing. I love these lights. More lights to come.

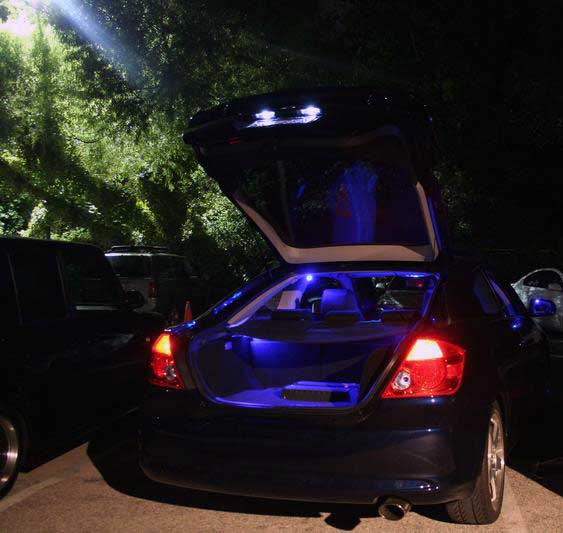

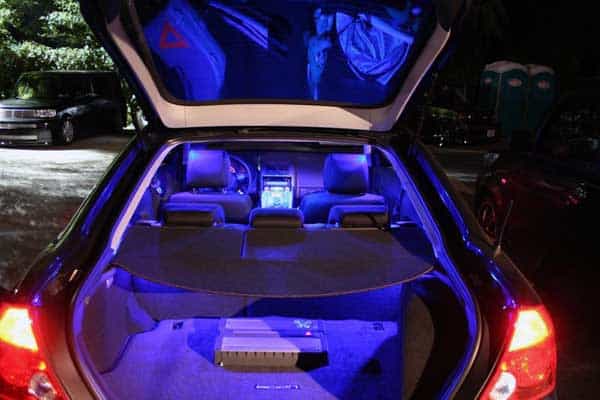

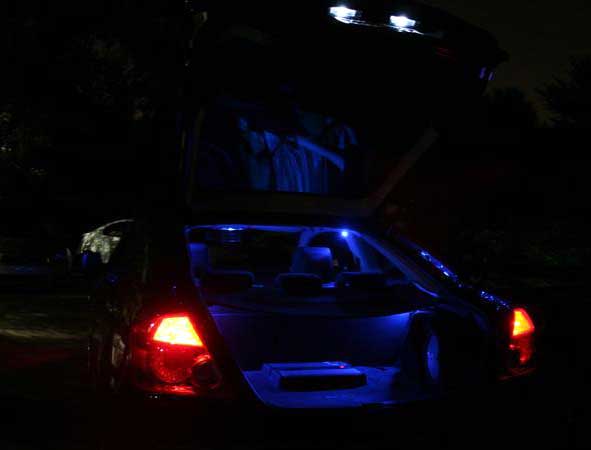

LED Modules 2 round modules on the headliner and 2 straight modules in the hatch

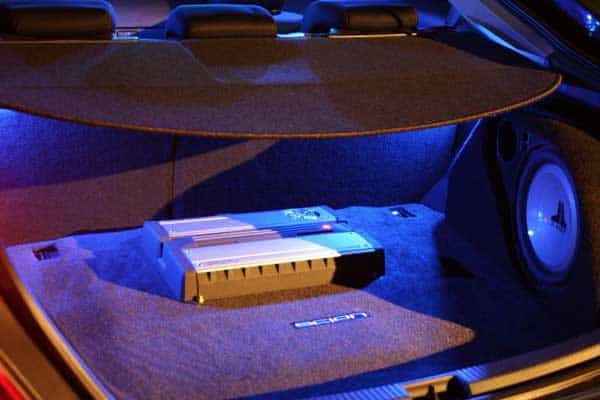

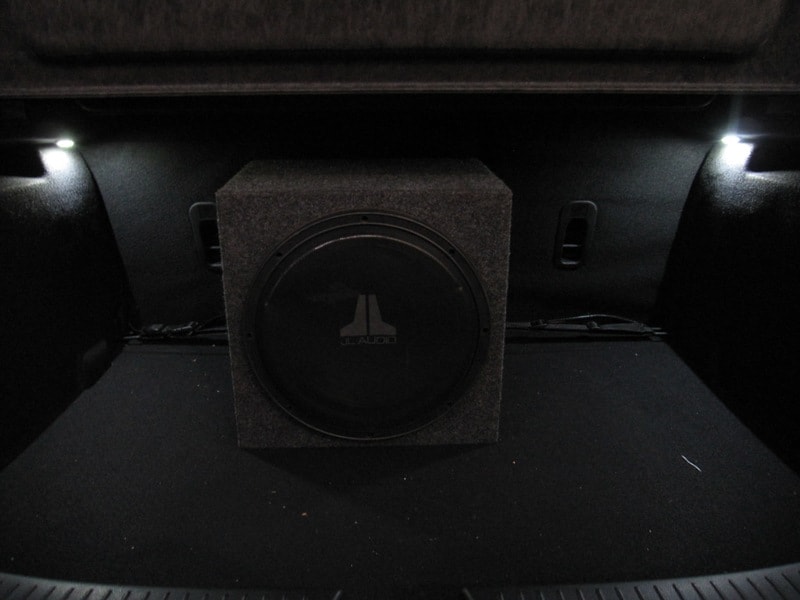

LED Modules 2 straight LED modules in the hatch

LED Modules Technical Info

Beam Angle	120 degree
Connection Type	2 black wires
Dimmable	Yes
IP Rating	IP67
LED Type	SMD 3528
Polarity Sensitive	Yes
Operating Voltage Range	12 VDC
Wire Gauge	24 AWG
Weight	8 grams
Housing	Plastic
Wire Length	420mm
Dimension	Straight: 60mm Length x 10.5mm Width x 5.3mm Height Round: 32mm Length x 23mm Width x 8mm Height

Version	LED Color	CCT(K)/Wavelength(nm)	Lumen(lm)	Current @ 12VDC (mA)
Straight / Round	Cool White	9000K+	25	40
Straight / Round	Warm White	3000-3200K	25	40
Straight / Round	Red	625	10	40
Straight / Round	Blue	470	10	40
Straight / Round	Green	525	15	40
Straight / Round	Amber	595	15	65
Straight / Round	Pink	-	5	40
Straight / Round	UV	410	0.1	40

Click & Download Round and Straight Module Technical Drawing

Only 13 in stock

Color

Style

Quantity

$8.99

Want it delivered Friday, November 22? Order it in the next 11 hours and 23 minutes, and choose One-Day Shipping at checkout.

Customer questions & answers

Question:

How long will the batteries of the Battery Holder (8)last when running two of the 12V Tiny SMD LED Modules: Black? - by Jayson (Las Vegas)

Answer:

If we assume each LED module draws 40 mA, and you have two, then thats 80 mA.
Pack of 8 x AA size batteries provides about 2000 mAh
So 2000 mAh / 80 mA = 25 hours

Question:

I notieced one customer complained about the heat output. I want to mount these as an accent light on wood. Is the heat going to be an issue? - by Wayne (Colmesneil, texas)

Answer:

No, they do not get that warm.

Question:

are these lights bright enough to use as a center high mounted (3rd) brake light? - by Rich (Monterey, CA)

Answer:

It's subjective whether they are bright enough. Some people may think they are bright enough, while others may not.

Red puts out about 13.5 lumens

You may also consider this Ultra Thin LED Light Bar

See more answered questions (74)

Customer Reviews

43 Reviews

Awesome!

Joel B from Michigan

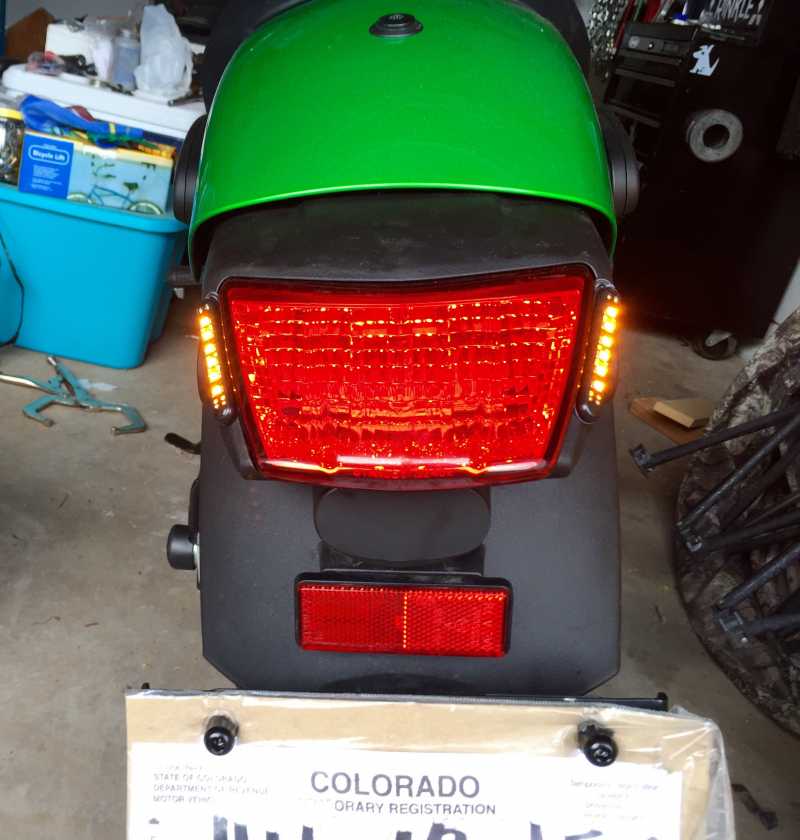

Bought these as secondary brake lights for my motorcycle, easy install and super bright!

Defective

Robert D from Michigan

I've purchased LED's from oznium previously, great products and quick shipping. Last order, not impressed. 3 of the 6 LED's in the module are defective. Filed a claim for a replacement, still waiting on a response.

Good units for secondary warning

Brian D from Rochester, NY

I bought some 3w 11mm no lens bolts, a couple surface mount round, and a couple surface mount straight modules. My intention was to create secondary warning when stopped on the side of the road and my tailgate was open. In sufficient quantity they could probably be considered primary warning, but they are not quite bright enough for that. Still, they make a very nice addition to my warning package. All three models are very slim which is what I needed for this application due to the tight clearances when the tailgate is closed. They are also well priced. Recommended. Also, one of the round modules was defective. I emailed it in on Sunday morning and heard back less than an hour later. The replacements were in the mail Monday. Very happy with how they handled that.

Video: https://youtu.be/Gja6j2iUUvg

Pink LED's turn white

Greg Gora from Crown Point, IN

I love Oznium and their products. Have been using them for years. Recently have had a bad run with these straight pink LED modules and Pink switches. They turn white. Not sure why. Oznium has sent new ones for free, just disappointed and tired of changing them.

sleek design

Carl Hurst from New Orleans, LA

Sleek design and brighter than the waterproof led flexible strip.
They replaced 3 of the waterproof strip due to a malfunction and I brought 5 more. I wish I would of brought the led modules first. I would definitely recommend the led modules if your looking sleek finish

Returning Customer, Consistent Excellent Customer Service!

Thanh Le from Duluth, GA

Returning Customer, Consistent Excellent Customer Service!
Great Products and Fast Shipping!

wiring question

Randale from Virginia

I bought a module led for my bike, hooked up to my battery, however I thought the light would come on only when the bike has power. The light stays on with the key out of the switch, should get a toggle switch? other than that the light is great.

Great!!

Dennis HOEPNER from St. Augustine, FL

I replaced my oem 12 volt halogen bulbs on my boat interior that got very hot and used too much battery with these led modules and it is awesome. They hardly even get warm and the lighting is perfect!! Highly recommend these!!

awesome product

Ben from Amite, LA

I've heard good things about oznium from a friend about how great their products are but seeing is believing. Bought four of these for my motorcycle and they are incredible. I will post pictures soon of these awesomely bright lights.

Perfect LED for my project

Jay from Illinois

After researching online for the perfect LED for my project I came across these module that worked great!! I did have a problem with the transformer that I ordered to power them but one email to Oznium and I had a replacement quickly. The LEDs have been up and running for over a month now and everything is perfect! Thanks!
