Premium Side View LED Bolt - License Plate Lights
Oznium's Side Emitting LED Bolt Lights, ideal for license plate light.
Oznium Side Emitting LED Bolt Lights

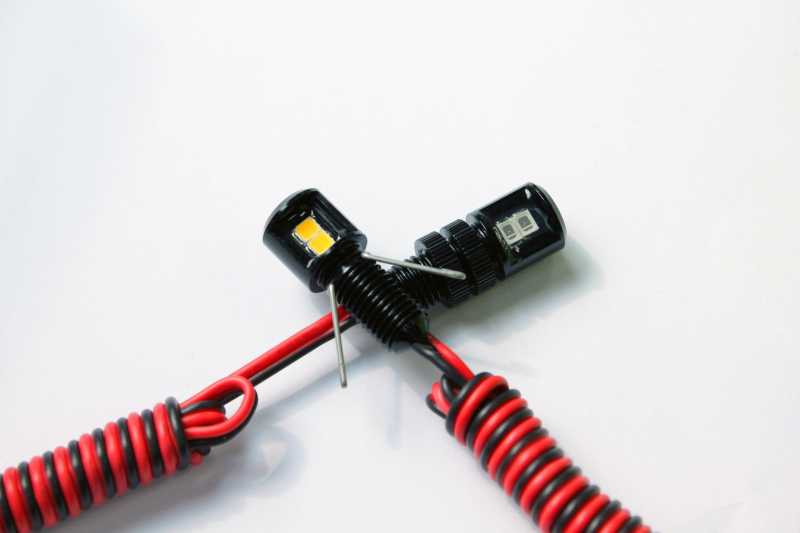

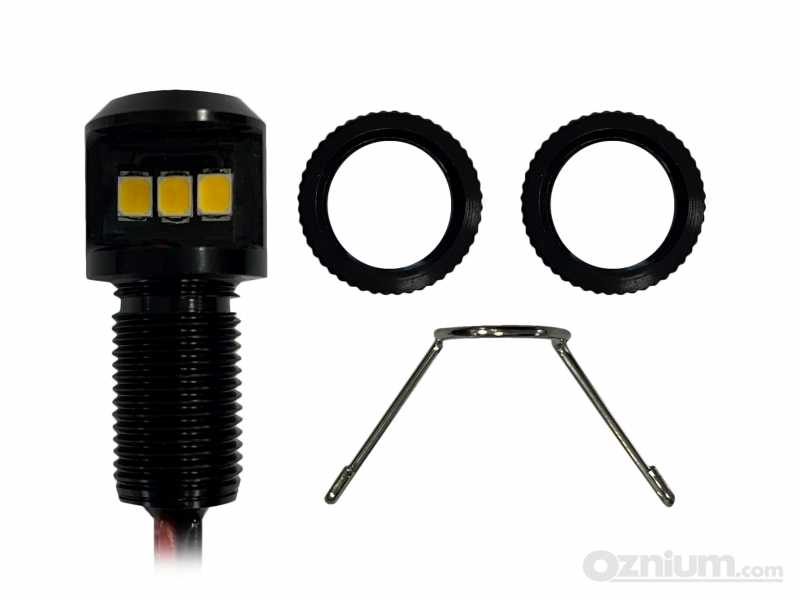

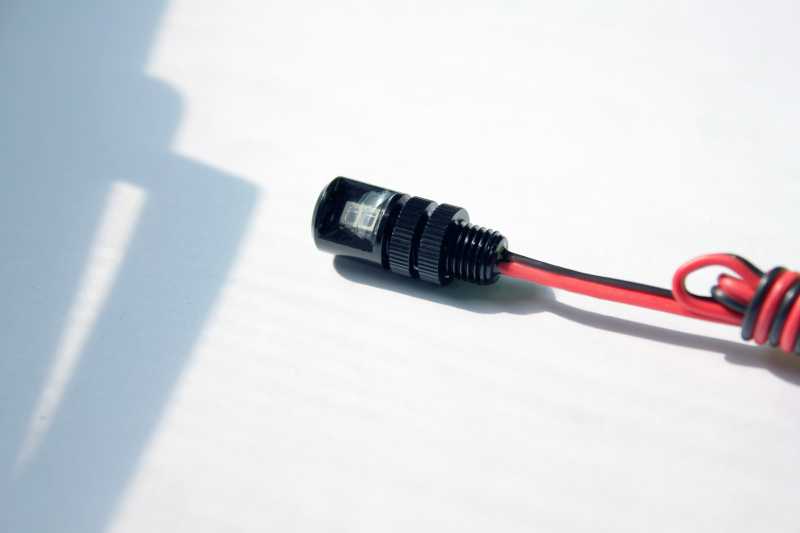

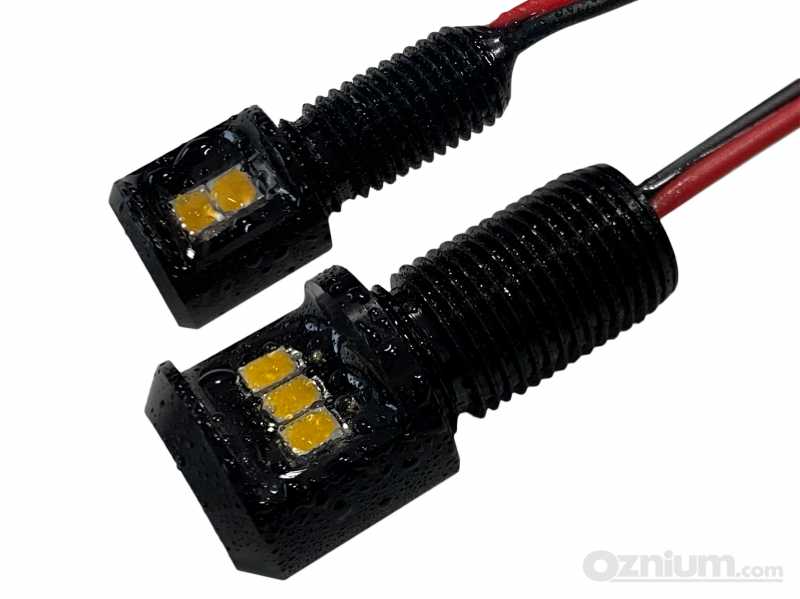

100% Oznium exclusive. Designed from the ground up, to be bright and sleek. Premium Side View LED bolt, in a super sleek CNC'ed anodized aluminum housing available in two sizes. Really bright, eye catching with a beautiful appearance. If you're looking for a side view LED bolt lights which emitting lights perpendicular to the surface its on, these are what you need. With flush mountable and extremely low profile design, our Side View LED bolts can be used in a wide range of applications.

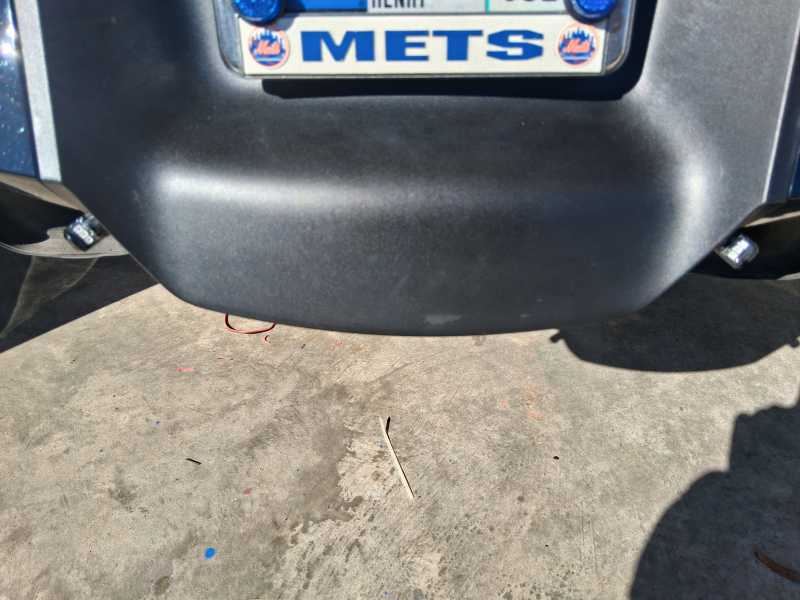

Perfect For License Plate

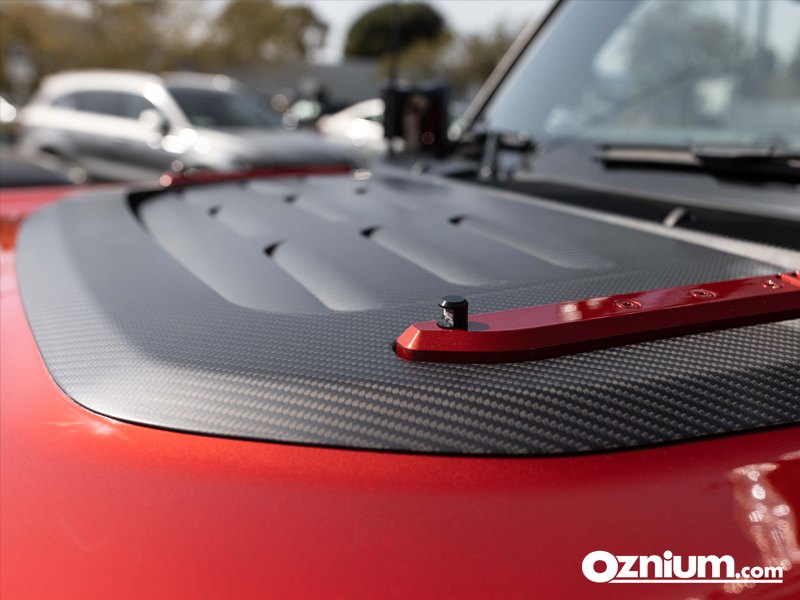

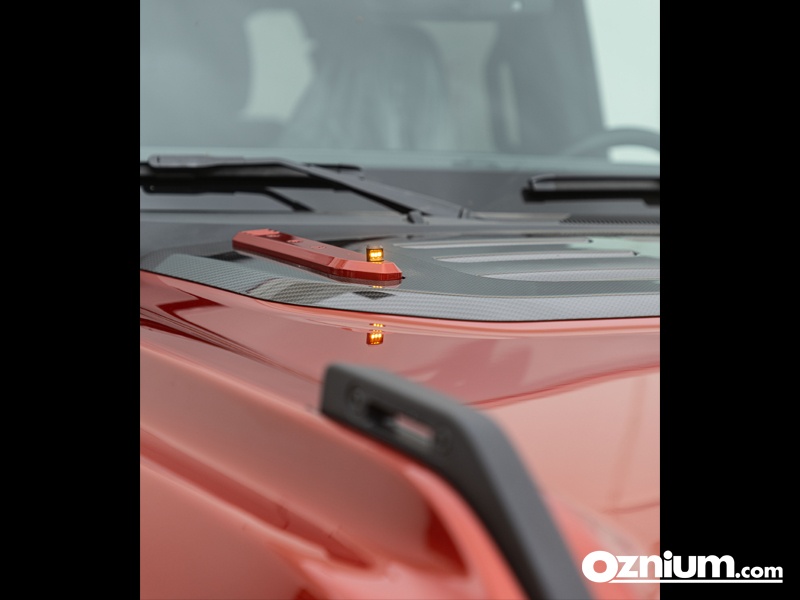

Upgrade your vehicle's lighting with the Side View LED Bolt – a direct replacement for your license plate screws, offering a simple bolt-on installation. Its versatility extends far beyond license plates, however; explore its potential.
Endless Applications

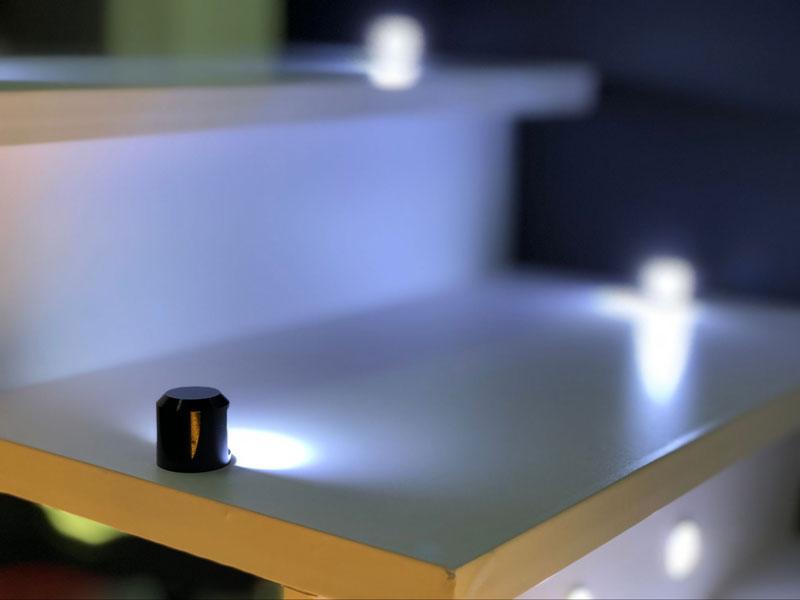

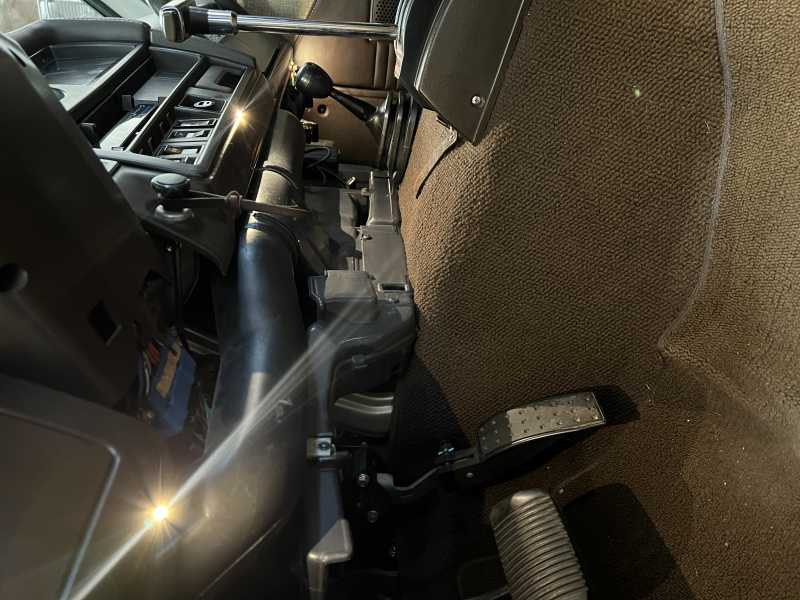

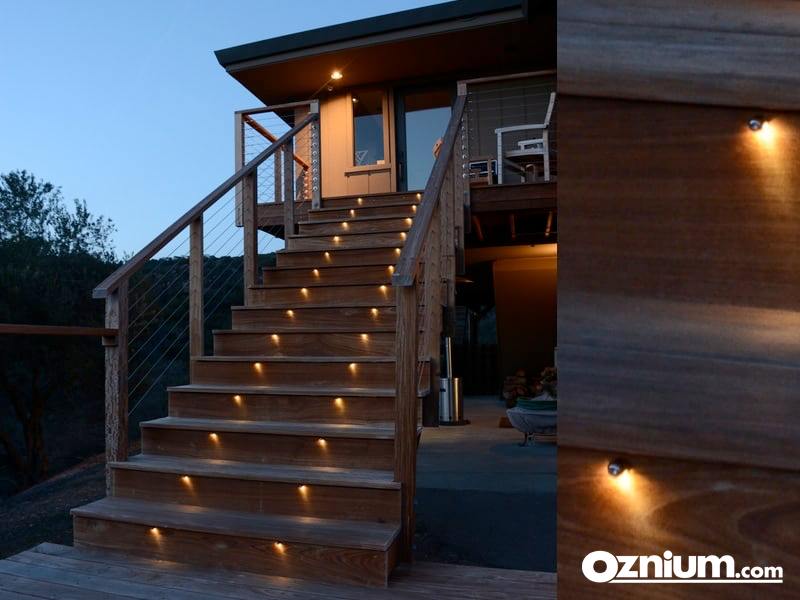

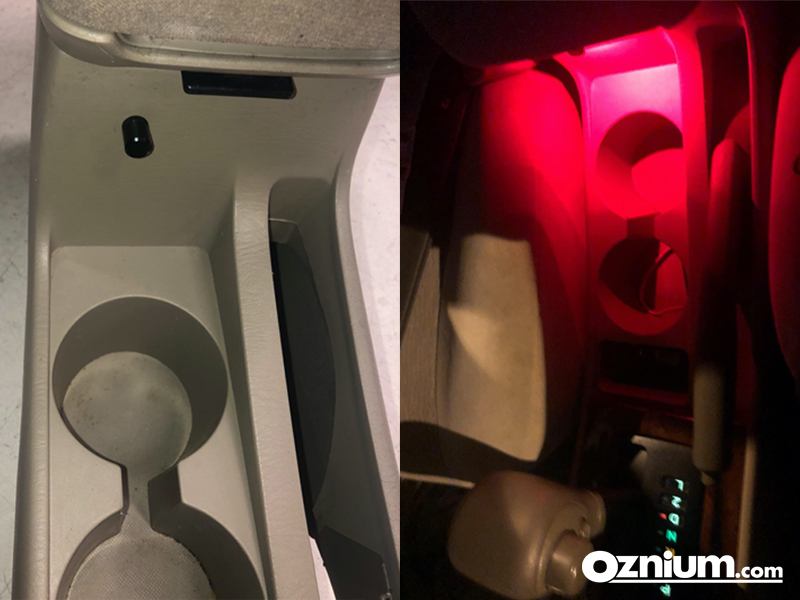

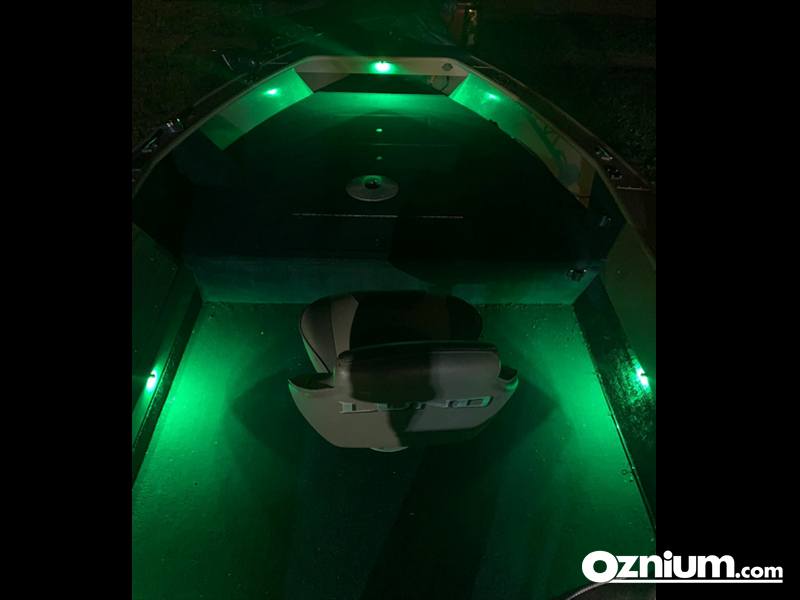

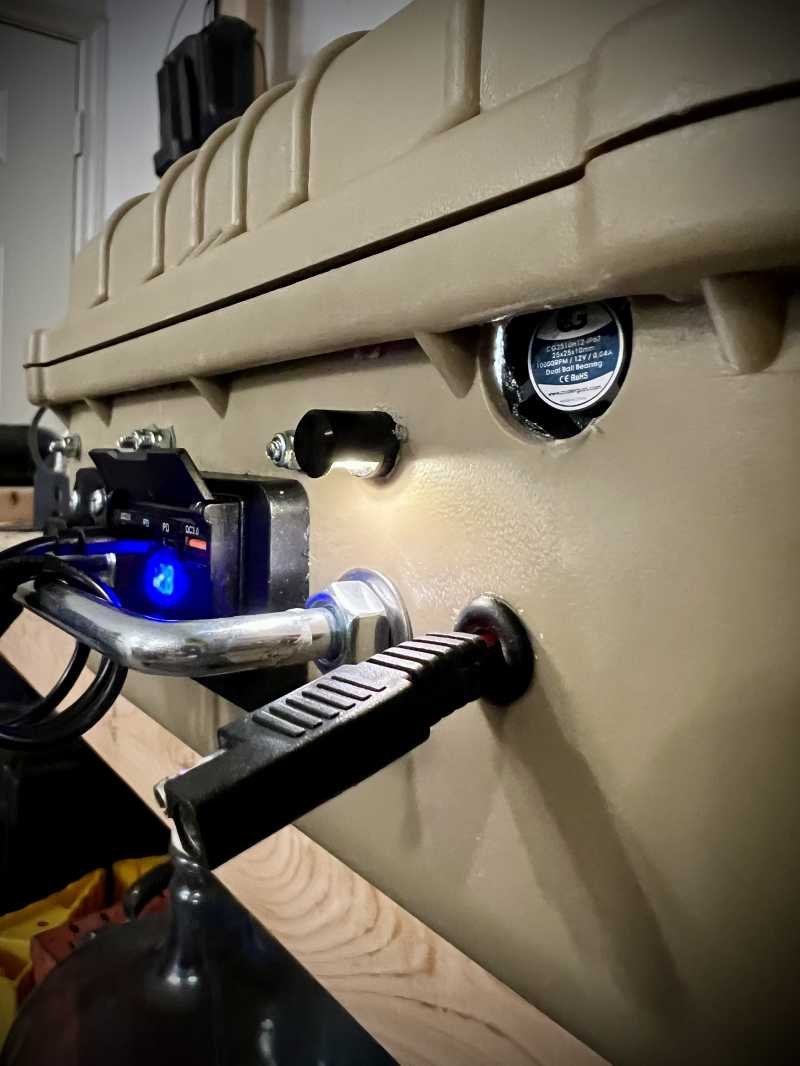

The only limit is your imagination. You can use them for architectural accents, indoors for uplight , outdoors for stairs, in walkways, in railings, decks, marine lighting etc. Use them for car lighting, in the front of your car, back of your car, or even inside your car. Use them for marine or industrial applications.
Related Accessories
Fade-in Fade-out LED Dimmer
Smooth Fading Effect for Soft Start and StopDual Intensity Brake Light Driver
Let Your Additional LEDs with Dual Intensity FunctionSwitchback LED Driver
Perfect for Switching LED ColorsMini LED Dimmer Knob
With a simple turn of the knob, you can dim down, or brighten up your LEDsDrill Bit
Buy them conveniently from us in various sizes to match the diameter of your LED Bolts: 6mm, 11mm, and 16mm.Rubber O-Ring
For a water-tight seal around the bolt bezel and your panel.Replacement Nuts
Need more nuts? You can buy extras.Mounting Bracket for Flush Mount LED Bolt
Elevate Your Lighting Installation with Oznium's New Flush Mount LED Bolt BracketDC Barrel Jack Adapter
These adapters allow you to convert your plug / jack / wires to each other.Wire Splice Connector
A quick and easy way to splice LED wires together for your lighting project.2 Core Marine Cable
Used for connecting LED strips or pretty much any other LED product, and extending wires.Premium Side View LED Bolt Technical Info
Beam Angle | 180 degree |
Connection Type | 2 black/red wires |
Dimmable | Yes |
IP Rating | IP67 |
LED Type | SMD 2835 |
Polarity Sensitive | Yes |
Operating Voltage Range | 12 VDC |
Wire Gauge | 22 AWG |
Weight | 19 grams (0.67 ounces) |
Housing | Aluminum |
Wire Length | 1 meter (3.3 feet) |

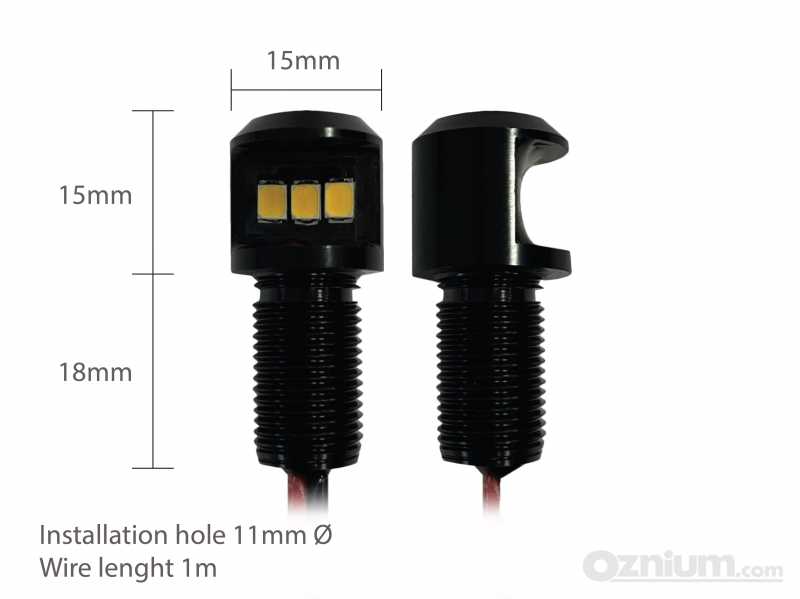

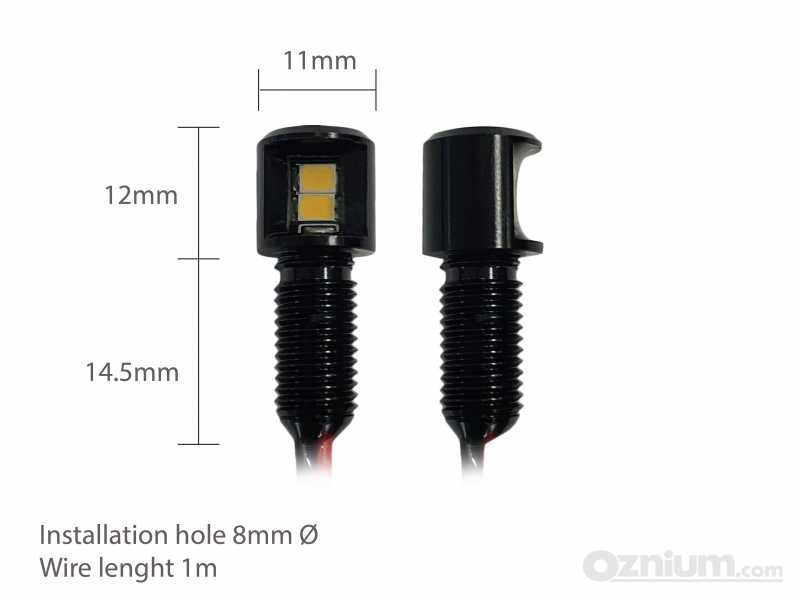

Dimension | Ø 15mm x 32.5mm Height Ø 11mm x 26mm Height |

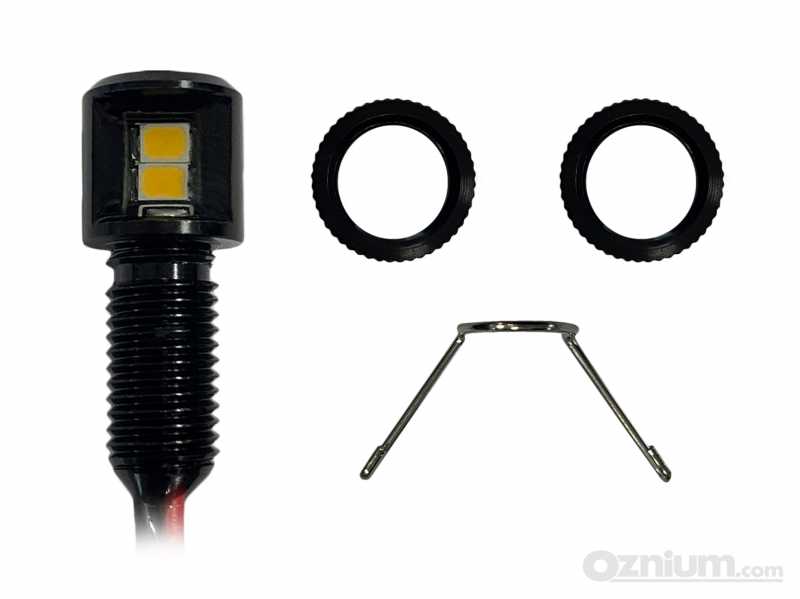

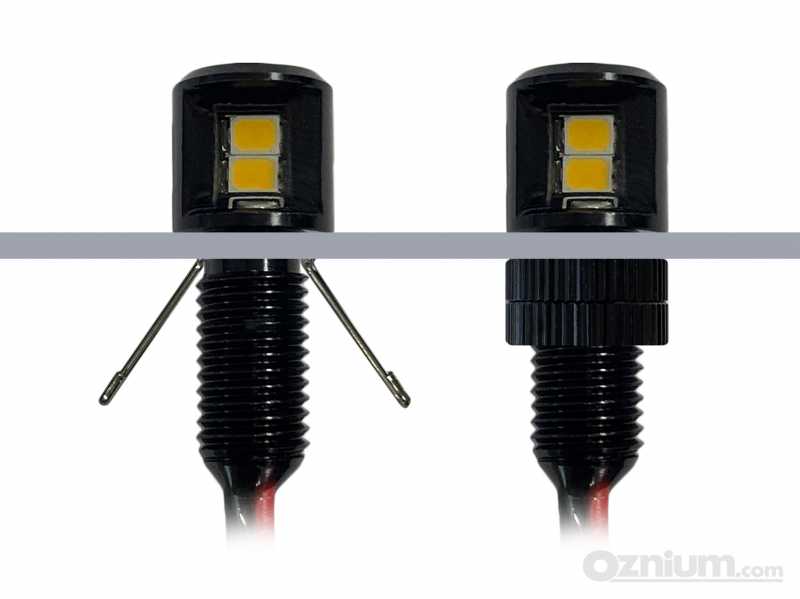

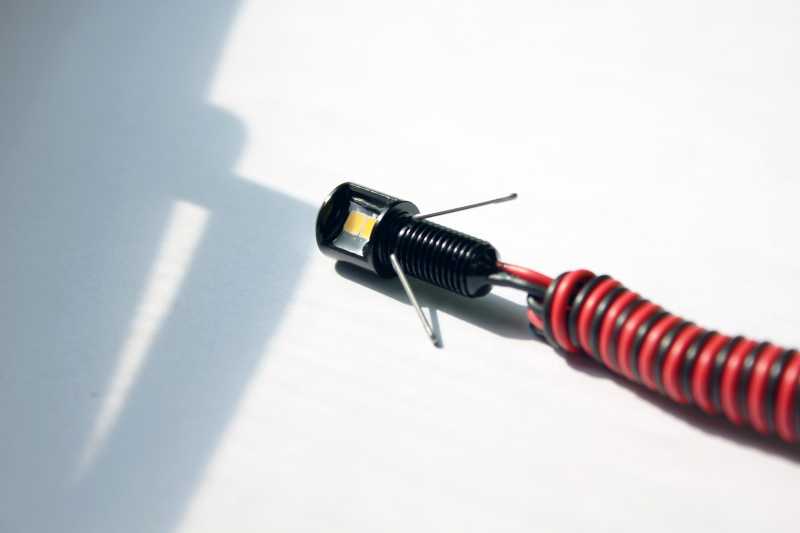

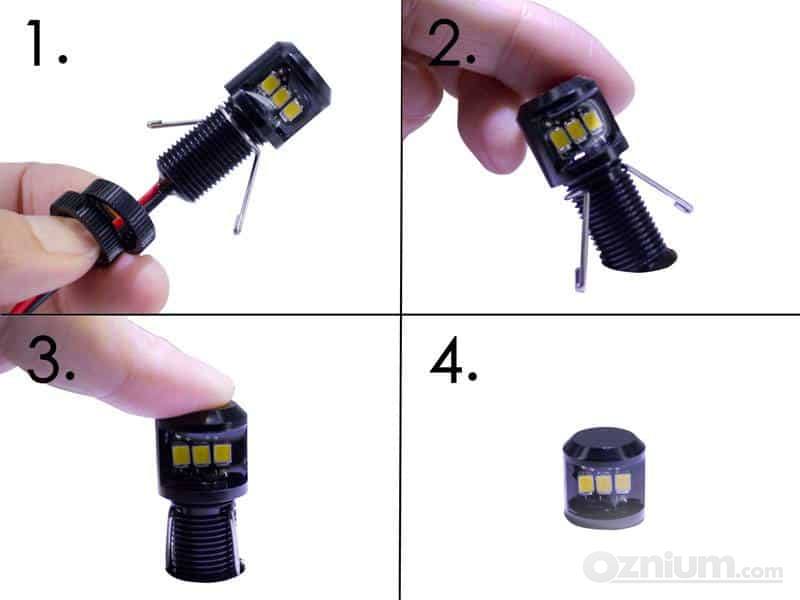

Drill Hole (11mm Version) | Mounting by nuts: 11mm Snap fit by spring: 12mm |
Drill Hole (8mm Version) | Mounting by nuts: 8mm Snap fit by spring: 9mm |
Version | LED Color | CCT(K)/Wavelength(nm) | Lumen(lm) | Current @ 12VDC (mA) |
---|---|---|---|---|
11mm | Cool White | 9000K+ | 36 | 50 |
11mm | Warm White | 3600-3800K | 32 | 43 |
11mm | Red | 625 | 8 | 43 |
11mm | Green | 525 | 28 | 50 |
11mm | Blue | 470 | 5 | 44 |
11mm | Amber | 595 | 6 | 50 |
8mm | Cool White | 9000K+ | 5 | 40 |
8mm | Warm White | 3000-3200K | 5 | 40 |
8mm | Red | 625 | 3 | 48 |
8mm | Green | 525 | 4 | 43 |
8mm | Blue | 470 | 2 | 41 |
8mm | Amber | 595 | 3 | 47 |
Click & Download full Technical Drawing
11mm version:
8mm version:
Customer questions & answers
Customer Reviews
12 Reviews
Ponton Boat Awesomeness
Galen Drake from Lufkin, TX
I ordered 30 of the 11mm cool white bolt lights and installed 25 of them, each one 2 feet apart just under my trim that covers where my floor meets the substructure above the pontoons. I secured them with blue loctite as they are going to take a beating from the water. They are all facing outward on both sides and on the front of my boat. The 3 feet long pigtails were a nice length and sealed very well to the light housings. They cast off a perfect amount of light onto the water for some very nice night fishing and only draw about 1.25 amps which will allow for some extended night fishing hours from my battery.
Great product 5/5 customer service experience
Jared Pandolfi from Garden Grove, CA
I ordered 3 bolts and 1 was a little dimmer. I contacted Oznium and in a 2 nights I had a new bolt delivered completely free and it worked perfect. Love doing business with companies who have customer service on point. Already planning an interior project with Oznium lights.
Awesome LEDs
Jeremy Enigk from Menomonie, WI

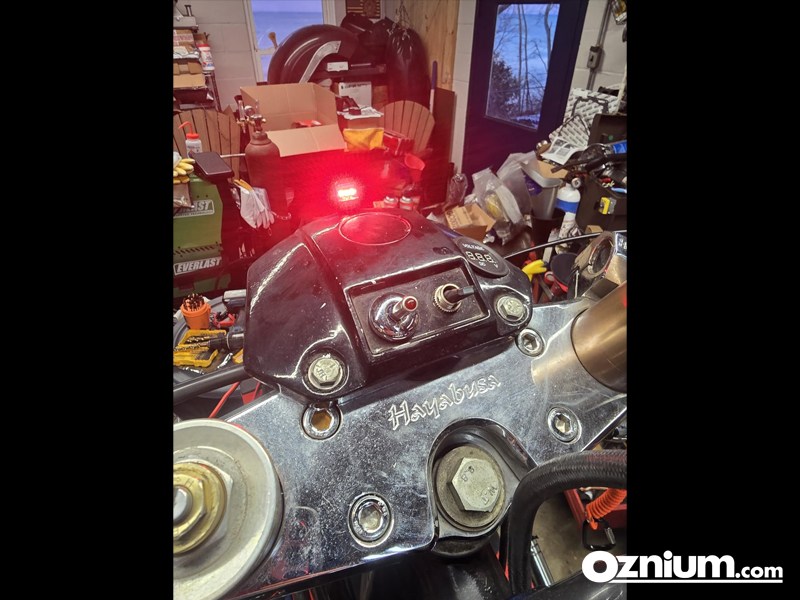

I'm using these as blinkers on my bike, and they worked perfectly. Only took a few minutes to hook them up. Shipping was very fast too.
Coming back for more.
Preston Helton from Williston, ND
These things are awesome. Not only are they super bright, they are super tough and so simple to install. I keep coming up with ideas and places to use them. They are so inexpensive and such a great invention. Thanks!!
Bolt head LEDs are the bomb!
Doug Buchanan from Lathrop, CA
Ordered up 2 reds and 2 ambers for blinkers on my Harley Cafe Bobber Thing-A-MA-Bob. I gotta say they are perfect. I actually drilled and taped the frame and used the nut to secure in the position I wanted. I was a bit worried they would not be bright enough but they are great!

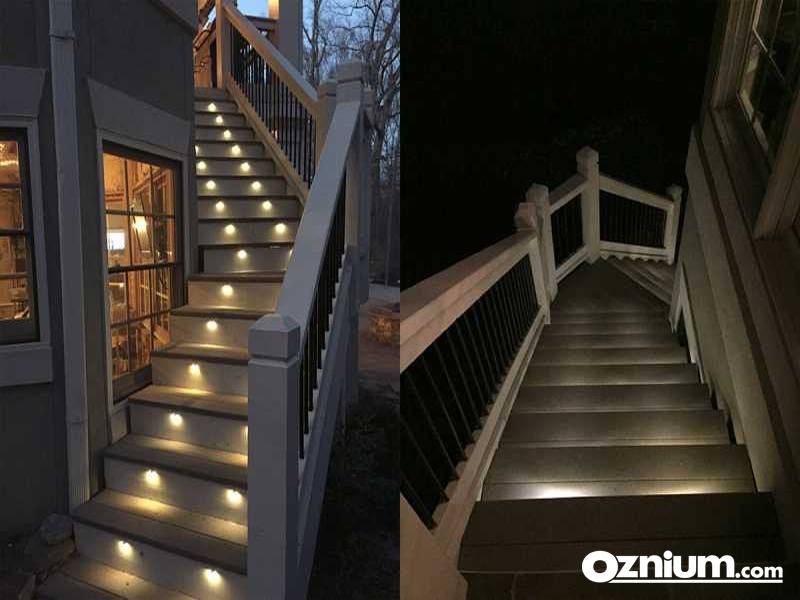

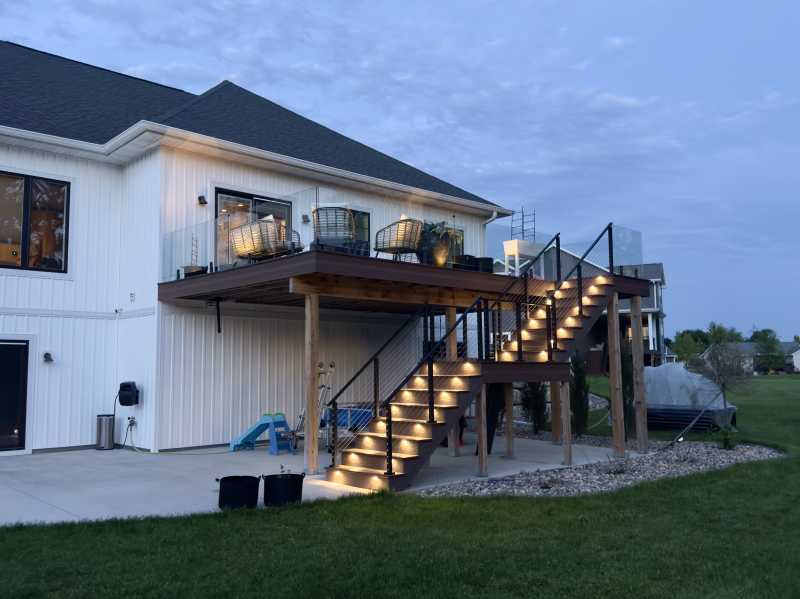

Perfect for outdoor stair tread lighting
Patrick G from Cumming, GA
So happy I stumbled upon these wonderful LED bolts after searching all over for a way to light my outdoor stairs. And thanks to Rob Z for his review, as I pretty much did exactly what he did. Drilled a pilot hole, and screwed the bolts in securely. I also did spray paint the heads of the bolts (masked the led part) to match the stairs I have (per my wife's directive). Worked perfectly, and looks great. These are excellent for directing the light down (as opposed to out) so as not to blind people walking up the stairs.
Thanks so much to Oznium as well (this was my first order and first dealing with them). Orders shipped to me very quickly and we're 100% accurate. They also offered clever and accurate tracking emails. Will definitely be shopping here again!
Nicer than I expected!
Tim H from Marysville, WA
I bought a pair of the black housing cool white lights for my friends CBR600. They look great and are a much nicer quality than the ones I have used in the past. The ones you can get at any old motorcycle shop are terribly inferior to these units. Those no name units are really thin walled around the threads so they provide you with a nylon nut so that you don't snap the threads off. These Oznium pieces are much thicker and are down right heavyweights in comparison, and these ones have an actual metal nut that you can tighten nicely. I'll will definitely order more when the need arises! Thanks Phil!
Great product
Joe Balogh from New Canaan, CT
I ordered these in cool white to replicate SVT Raptor grill lights on my 2001 Harley F150. They came out great and were easy to work with. One was defective but it took less than an hour for Oznium to set up a replacement. Amazing products and service.
concept is great
Mark Swimm from Depauw, IN
I'm using one of these as a motorcycle license plate light. It works great. Two lights would be perfect but one lights up more than half the plate.
excellent
Frank from FL
i love using these for my RC Models. i have some on a truck and quadcopter and they look awesome. nice quality and sealed with hot glue. im not sure i could break these if i try
