Oznium.com Exclusive Product

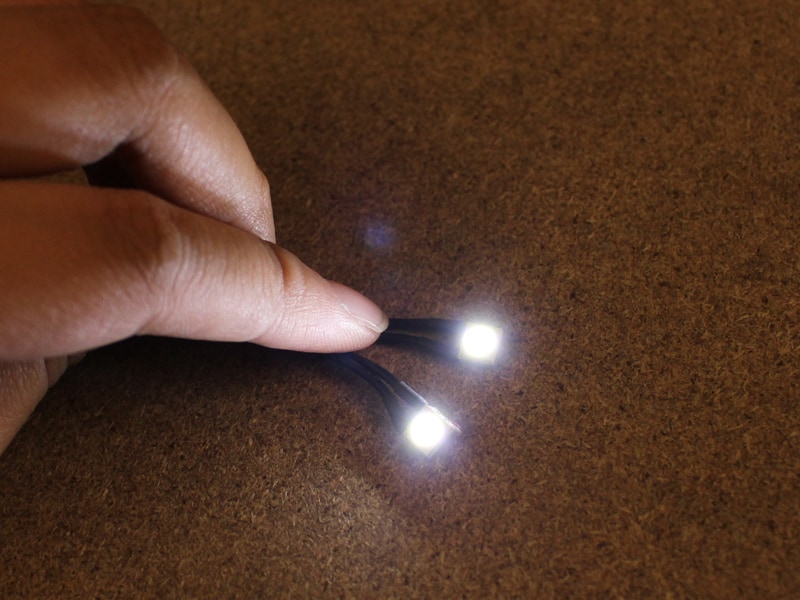

Do you ever feel tired to DIY your LED projects especially when working with tiny LEDs? You feel its very time-consuming to solder the wires to such small connection pads on every LED for your self-made LED decorations? Our 12V super bright custom prewired LED is the solution. This prewired SMD-type LED comes with a built-in resistor and 1-foot of wire. All you need to do is just plug them in. No need to cut, or even solder. Oznium does all the work for you. DIY projects have never been easier.

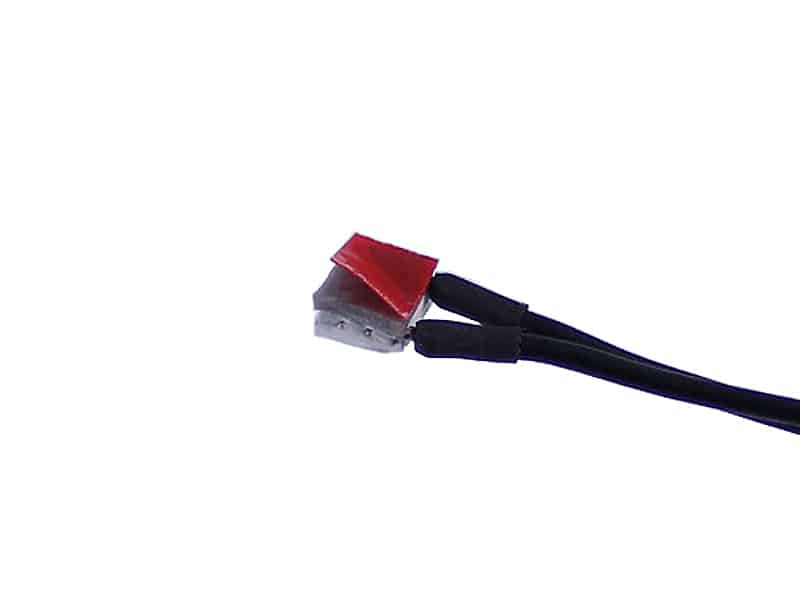

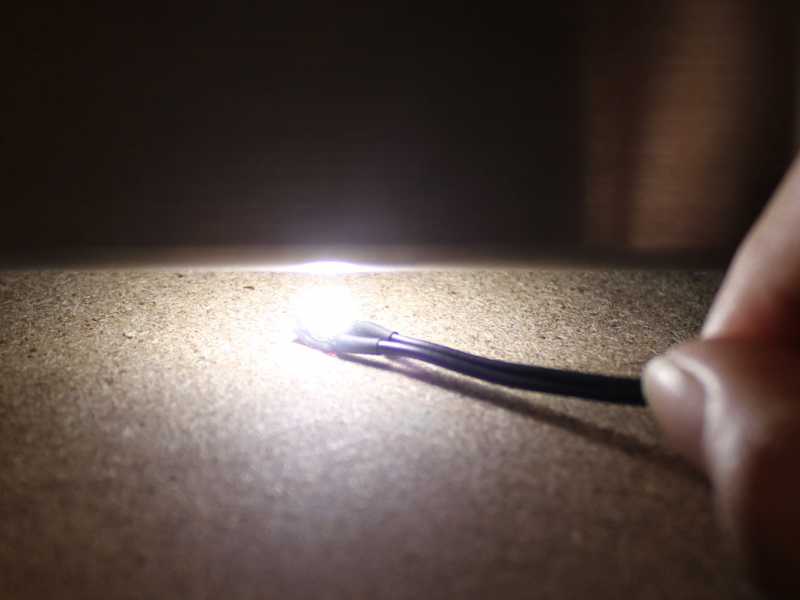

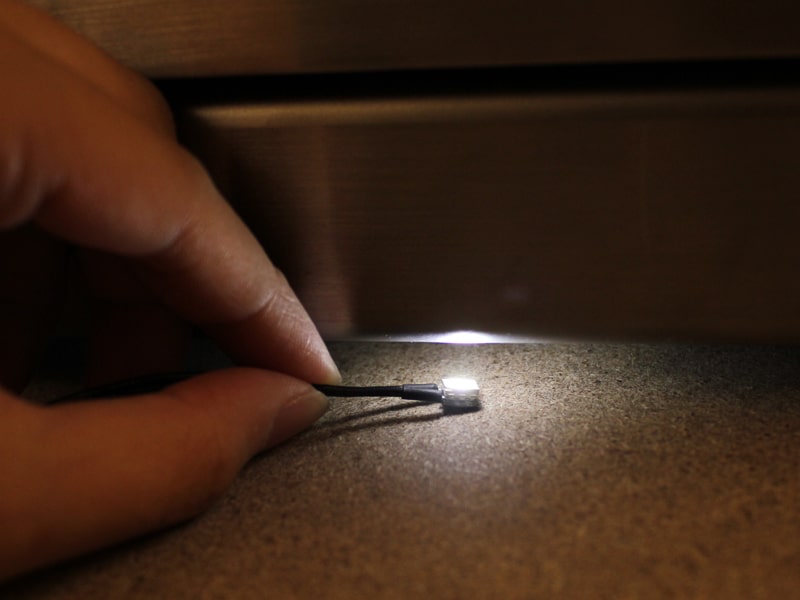

We always use the best quality LEDs for our products, for your satisfaction. We made this product with a super bright and wide-angle premium SMD-type LED. In order to keep the size as small as it is, no circuit board or cover is attached to it, only wires & resistors. Based on customer requests, we've added a 3M super adhesive tape to the back for extremely easy installation. Simply peel & stick, plug & play!
With this ultra slim body, it is NOT waterproof. If you are looking for a completely waterproof SMD LED, check our other exclusive Prewired Surface Mount LEDs.

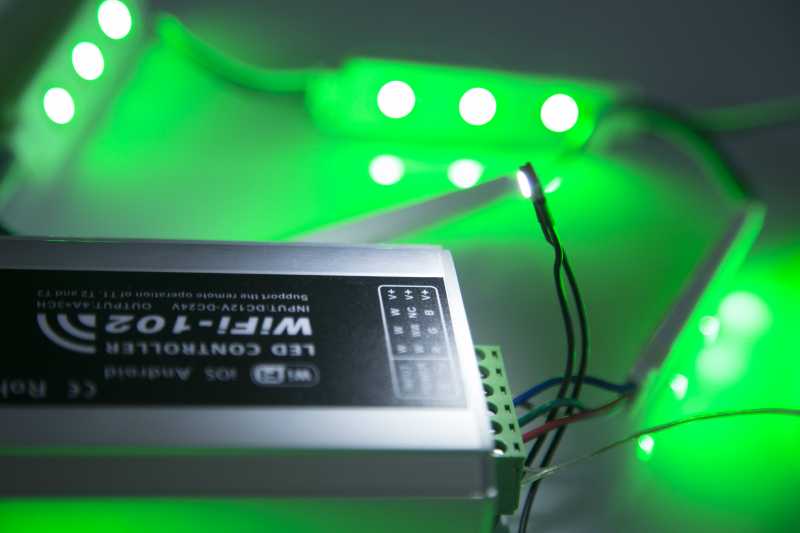

Want to add flashing effects or a dimming function?

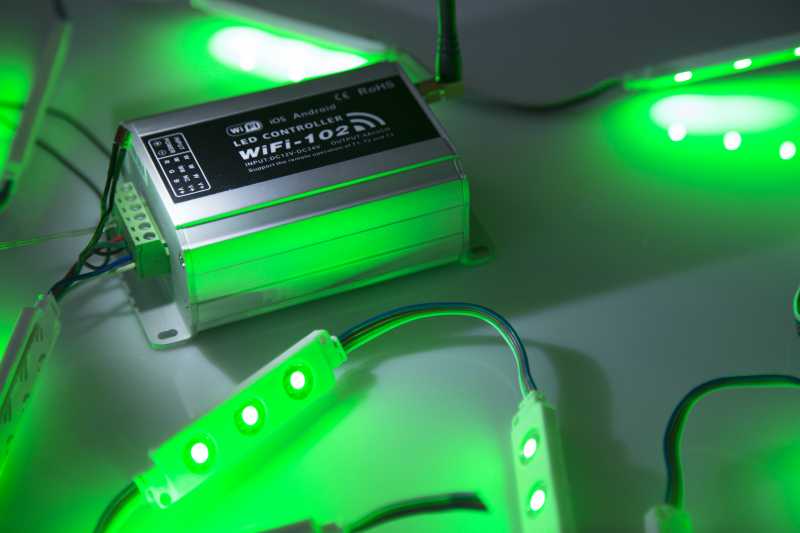

You can hook them up to our Inline LED Controller. It can power up to 12 amps, so it can control lots of these prewired 5050 LEDs!

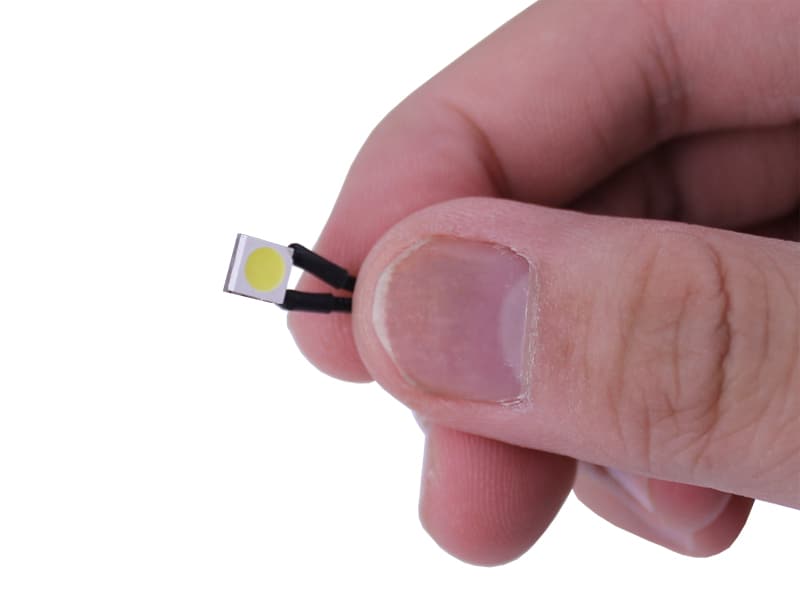

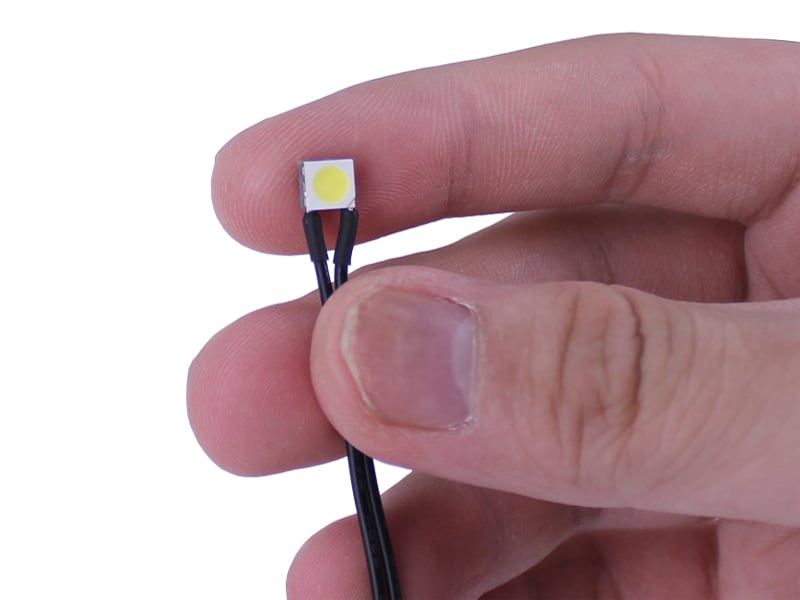

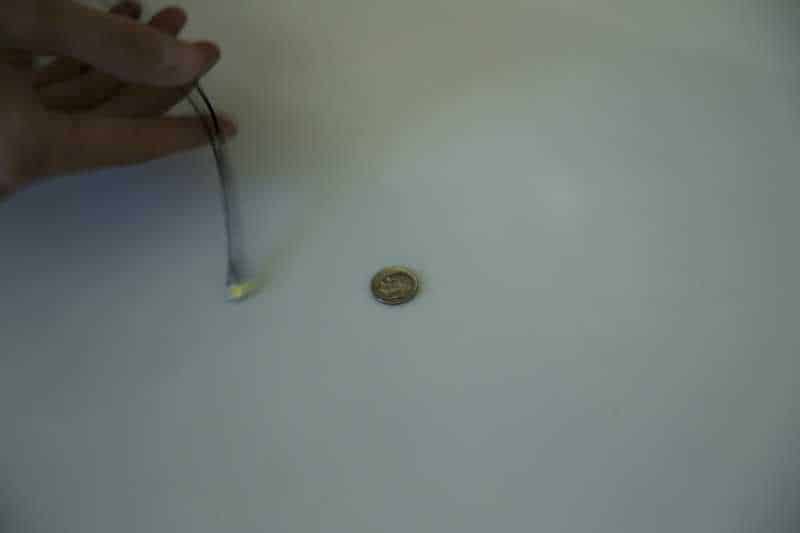

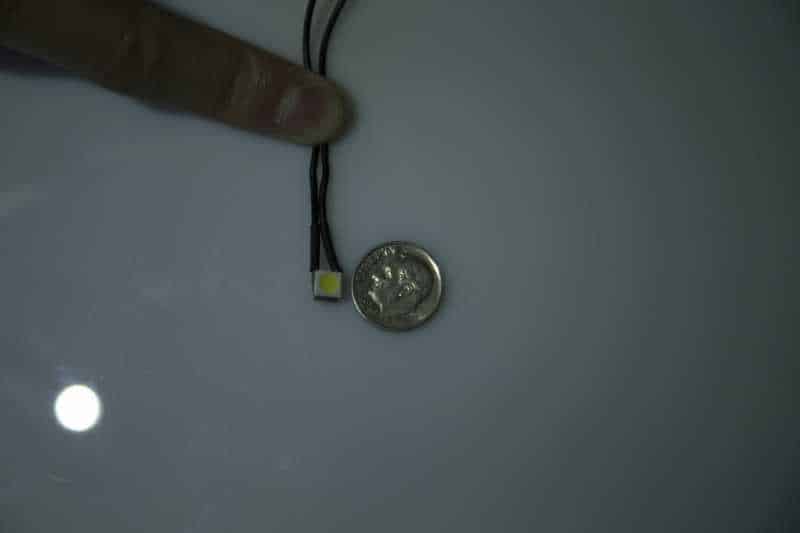

Dimensions: 3mm thick (height) and 5.5mm (width) by 5mm (length)
Wire Length: 1 foot

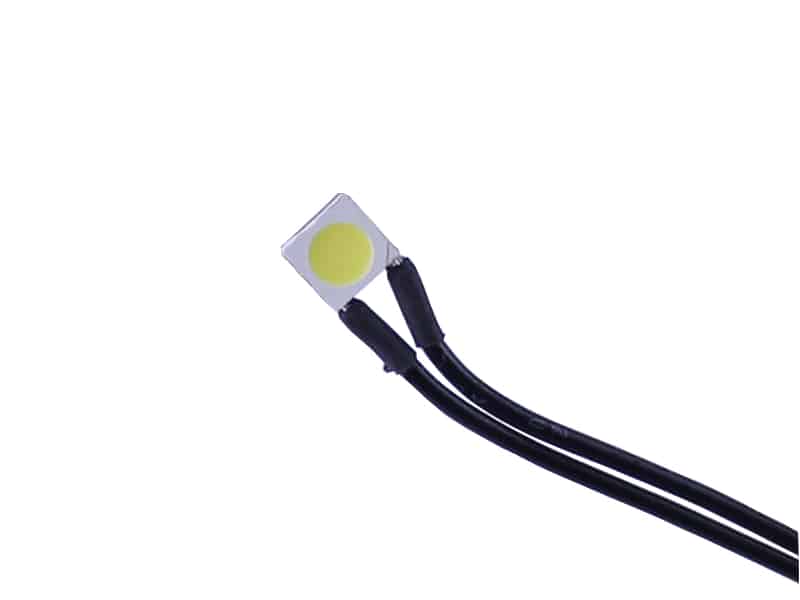

Pre-wired 5050 LED
Pre-wired 5050 LED Technical Info
Specifications:
Dimensions: 3mm thick (height) and 5.5mm (width) by 5mm (length)
Wire length: 310mm (12.2 inches)
Voltage | 12V |
---|
Current (mA) | Luminous Flux (lumens) | Wavelength (nm) | Color Temperature (deg. K) | |
---|---|---|---|---|
Cool White | 45 | 15.5 | 490 | 6100 |
Click to download PDF dimension drawing spec sheets:
Customer questions & answers
I'd like to run this off a 5v system. Can you share the LED voltage so I can determine what resistor I'll need to swap in? Thank you.
These are pre-wired with a resistor so are designed to be powered with 12V.
If you remove the resistor, you can power the LED at around 2.7-3V (White, Blue, Green), or 2.5-2.7V (Red, Amber)
Max current of the LED: 60mA@3VDC
If you want to power the White LED from a 5V source, we suggest replacing the resistor with a 47 ohm 1/4W resistor.
If you remove the resistor, you can power the LED at around 2.7-3V (White, Blue, Green), or 2.5-2.7V (Red, Amber)
Max current of the LED: 60mA@3VDC
If you want to power the White LED from a 5V source, we suggest replacing the resistor with a 47 ohm 1/4W resistor.

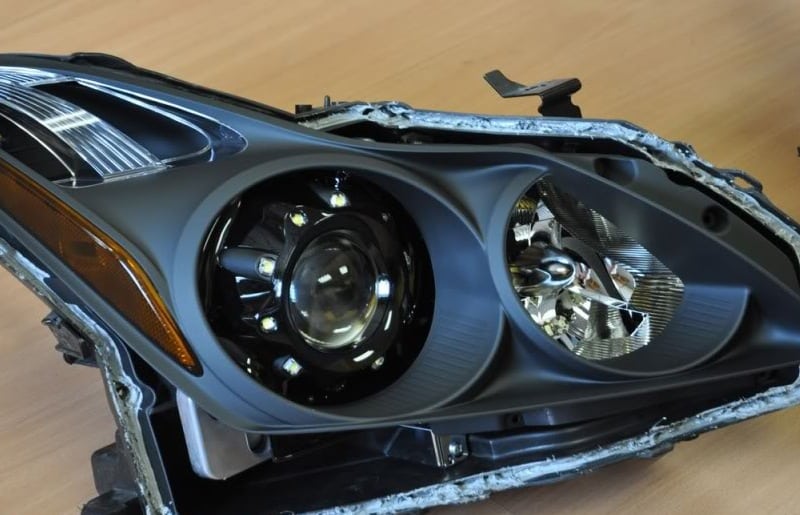

If the leads are removed can it be soldered to an instrument cluster? Does it make any heat? - by George (North Las Vegas, NV)
Yes it can be soldered to an instrument cluster.
It makes a very small amount of heat, but nothing you need to worry about.
It makes a very small amount of heat, but nothing you need to worry about.
If I wire afew of these in a row do I need a resistor on each one if I daisy chain them along? Or do I just need it on the first one? - by Scott (Lethbridge canada)
They are already prewired with the appropriate resistor to drop the voltage down from ~12V, so just wire the hot leads together and the grounds together.
No additional resistors needed. And best not to remove any resistors either. Technically, you could remove the resistors and wire a certain number of LEDs in series, but unless you know what you're doing and are able to do the electrical calculations, its best to just wire them all in parallel.

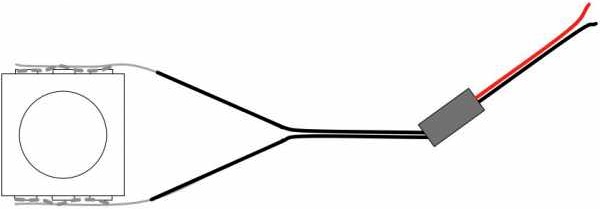

Here's a diagram that shows where the resistor is on the wire.
No additional resistors needed. And best not to remove any resistors either. Technically, you could remove the resistors and wire a certain number of LEDs in series, but unless you know what you're doing and are able to do the electrical calculations, its best to just wire them all in parallel.
Here's a diagram that shows where the resistor is on the wire.
