Color Temperature Controller Kit
Changing color temperature for dual white LED products.
LED Controller Kit For Color Temperature Adjustment | 12-24VDC | Oznium |
Color Temperature Adjustment by Slide Touch Bar
Just use your finger to slide up and down the touch bar for adjusting LED color temperature.
Just use your finger to slide up and down the touch bar for adjusting LED color temperature.
3 Functions in 1 Remote Control
You can turn ON & OFF, dimming and color temperature adjustment by an elegant slim remote easily.
You can turn ON & OFF, dimming and color temperature adjustment by an elegant slim remote easily.
30 Meters Long Distance Control Range
The LED controller can receive signals from the remote up to 30 meters away for open spec.
The LED controller can receive signals from the remote up to 30 meters away for open spec.
Wall Mount Holder With Magnet
There is a magnet on the back of the remote to attach to the wall mount or any metal surface.
There is a magnet on the back of the remote to attach to the wall mount or any metal surface.

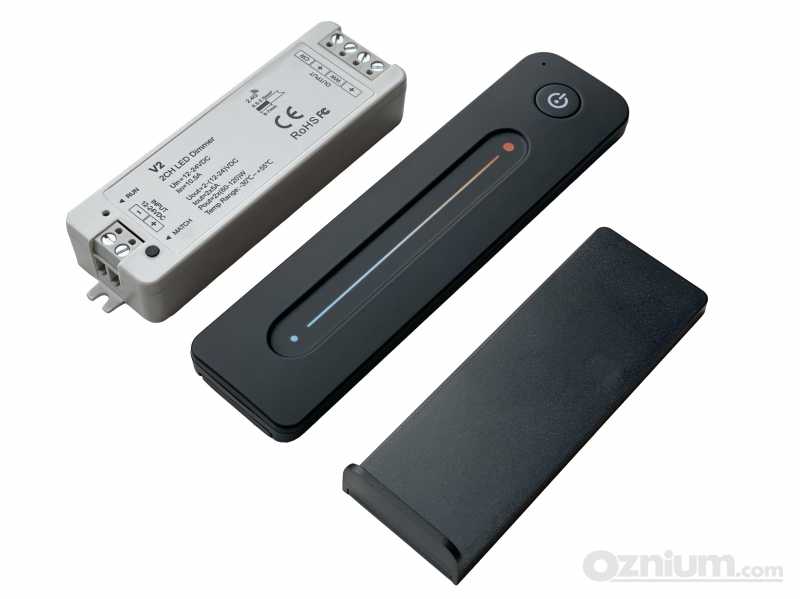

Color Temperature LED Controller Kit
This LED controller kit is designed to work with any 12-24VDC adjustbale color temperature LED products ideally, such as Oznium's COB Dotless LED Strip Lights. The slim style remote has a slide touch bar and button, it looks so clear and easy to use. Both for the remote and wall mount holder come with a magnet, you can stuck them together very easily.RF Remote Control
Comparing with the common infrared (IR) remotes, RF (Radio Frequency) remotes do not have to be aimed at the equipment. You don't need connecting it to the Wi-Fi or Bluetooth, just pick up the slim remote to adjust the color temperature of the lights.Synchronize On Multiple Number Of Device

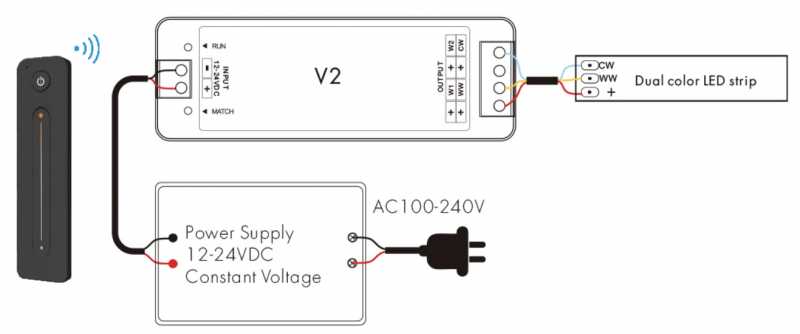

One controller can match with up to ten remotes, or just use one remote to control two or three controllers. As well as the control range is up to 30 meters for open spec, it's perfect for optimize the home lighting.Wiring Diagram:

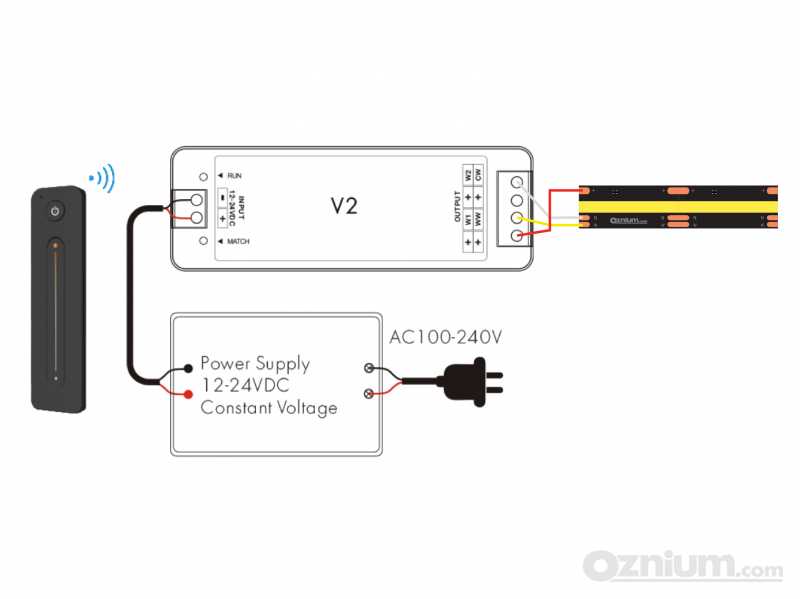

Work With Adjustable 3000-6500K COB Dotless LED Strip Lights
For More Functions & Product Details:
Click to Read Color Temperature LED Controller Kit Instructions ManualRelated Accessories
COB Dotless LED Strip Lights
Dotless, linear lighting effect LED strip lights
MEAN WELL LPV Waterproof AC to DC Adapter
MEAN WELL Waterproof AC to DC adapter
Switchback LED Driver
Perfect for Switching LED Colors
Mini LED Dimmer Knob
With a simple turn of the knob, you can dim down, or brighten up your LEDs
Drill Bit
Buy them conveniently from us in various sizes to match the diameter of your LED Bolts: 6mm, 11mm, and 16mm.
Mounting Clip
Specifically for Ultra Thin LED Light Bar installation
Mounting Screw
M2 size, 8mm lengths.
DC Barrel Jack Adapter
These adapters allow you to convert your plug / jack / wires to each other.
Wire Splice Connector
A quick and easy way to splice LED wires together for your lighting project.
2 Core Marine Cable
Used for connecting LED strips or pretty much any other LED product, and extending wires.
RGB 4 Conductor Zip Wire
22 gauge RGB 4 wire power conductor wire.
Color Temperature LED Controller Kit Photos
Color Temperature LED Controller Kit Technical Info
| Controller Spec: | |
| Controller's Operating Voltage | 12-24VDC |
| Controller's Output Voltage | The Same With Operating Voltage |
| Max. Output Current | 2 Channels, 5A Per Channel |
| Max. Ouput Power | 2x (60-120)W |
| Operating Temperature | -30°C ~ 55°C |
| IP Rating | IP20 |
| Remote Spec: | |
| Remote's Output Signal | RF (2.4 GHz) |
| Remote's Working Voltage | 3VDC (CR2032 Battery) |
| Working Current | < 5mA |
| Standby Current | < 0.01 mA |
| Standby Time | 1 Year |
| Control Distance | Up to 30m for open spec |
| Dimming Data: | |
| Dimming Level | 4096 Levels |
| Dimming Range | 0 - 100% |
| Dimming Curve | Linear |
| PWM Frequency | 2000 Hz |
| Others: | |
| Warranty | 5 Years |
| Protection | Reverse Polarity |
