The Common Positive Multifunctional LED controller houses a high powered microcomputer which supports DMX512. This high powered LED controller controls the design and run speed of more than 30 settings. It allows the LED's to be dim-able from 1 (very dim) to 100 (exceedingly bright). This controller gives any user full lighting manipulation to meet almost all applications needs by allowing its users to control all colors, hue, and brightness of the LED's.
LED Controller | Multifunctional LED Controller

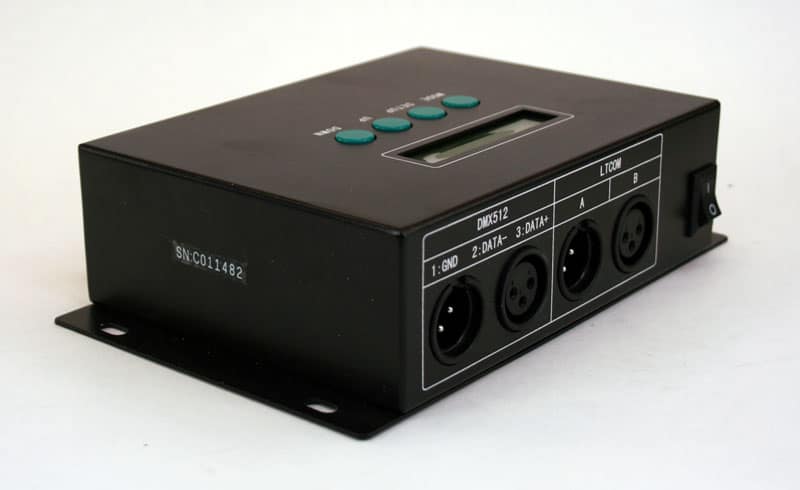

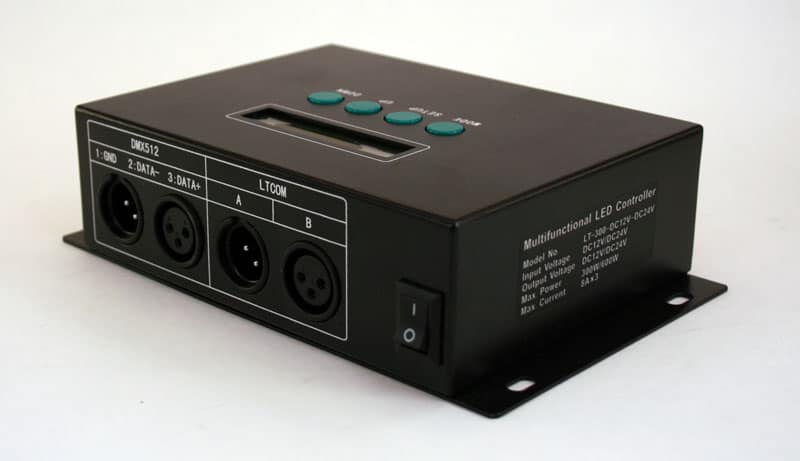

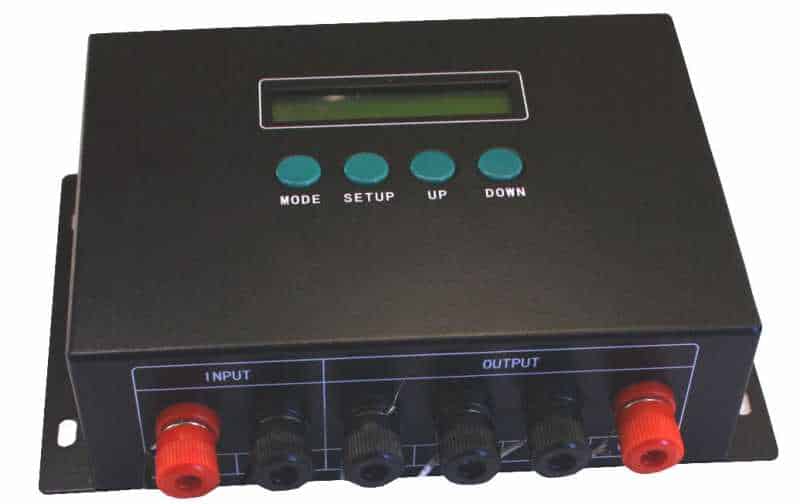

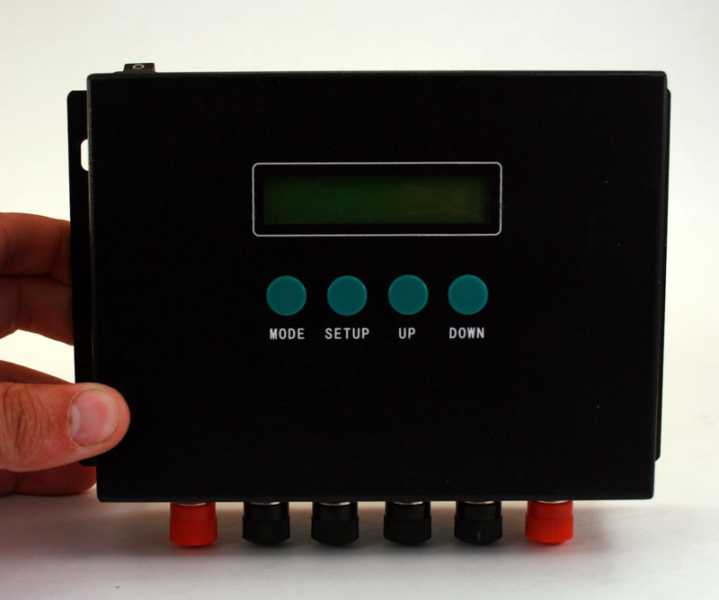

LED Multifunctional Full-color Controller Photos

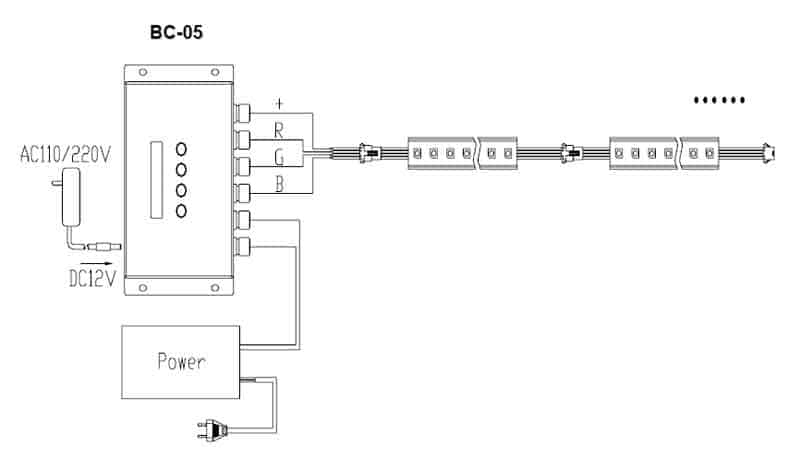

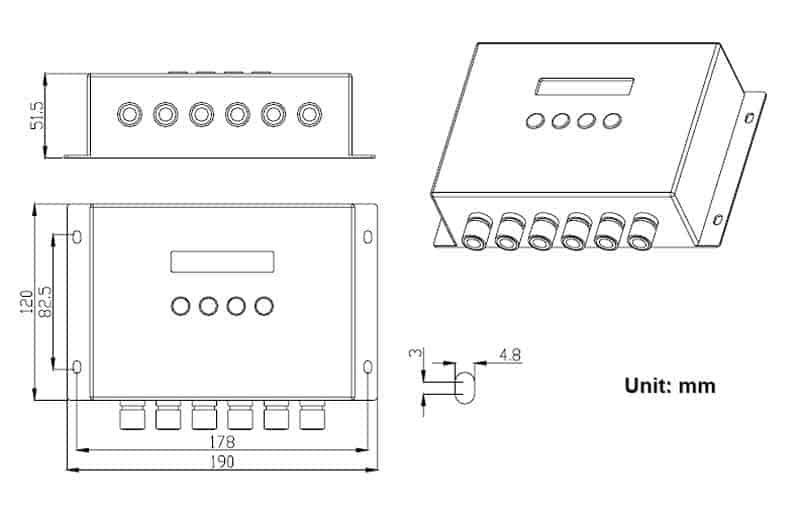

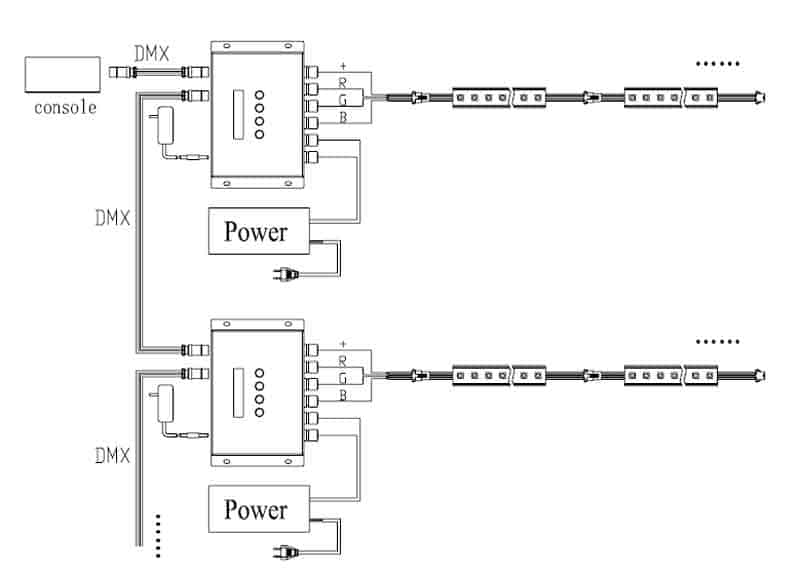

LED Multifunctional Full-color Controller Technical Info
Common Positive| Setting # | LCD Reading | Function |
|---|---|---|
| 1 | BLACK | Static Black |
| 2 | STATIC RED | Static Red |
| 3 | STATIC GREEN | Static Green |
| 4 | STATIC BLUE | Static Blue |
| 5 | STATIC YELLOW | Static Yellow |
| 6 | STATIC PURPLE | Static Purple |
| 7 | STATIC CYAN | Static Cyan |
| 8 | STATIC WHITE | Static White |
| 9 | COLOR CHANGE | Seven-color skip change |
| 10 | COLOR CHANGE2 | Seven-color skip change (twinkling) |
| 11 | SIX COLOR CHANGE | Six-color skip change |
| 12 | SIX COLOR CHANGE2 | Six-color skip change2 |
| 13 | RGB CHANGE | Three-color skip change |
| 14 | RGB CHANGE2 | Three-color skip change (twinkling) |
| 15 | RG CHANGE | R+G skip change |
| 16 | RB CHANGE | R+B skip change |
| 17 | GB CHANGE | G+B skip change |
| 18 | WHITE CHANGE | White frequently twinkling |
| 19 | COLOR SMOOTH | Seven-color gradual change |
| 20 | RGB SMOOTH | Three-color gradual change |
| 21 | RG SMOOTH | R+G fades in and out |
| 22 | RB SMOOTH | R+B fades in and out |
| 23 | GB SMOOTH | G+B fades in and out |
| 24 | COLOR GRADUAL | Seven-colors gradually fade on and off |
| 25 | RGB GRADUAL | Three-colors gradually fade on and off |
| 26 | WHITE GRADUAL | White gradually fades on and off |
| 27 | RG GRADUAL | R+G gradually fade on and off |
| 28 | RB GRADUAL | R+B gradually fade on and off |
| 29 | GB GRADUAL | G+B gradually fade on and off |
| 30 | R GRADUAL | R gradually fades on and off |
| 31 | G GRADUAL | G gradually fades on and off |
| 32 | B GRADUAL | B gradually fades on and off |
| 33 | ADJUST MODE | RGB color adjusted |
| 34 | AUTO PROGRAM | |
| 35 | DMX512 MODE | DMX contoller mode |
| 36 | DMX512 DECODER | DMX decoder |
Customer questions & answers
If I use the Dmx input can I control the rgb levels to create my own colors and then play them back from the Dmx controller. Example: fade from white to orange .. Then orange to white again
Yes
How many rgb ribbon strips (16 foot rolls) will this controller handle? What is the current draw of the rgb ribbon strips per meter?
Max. output = 24 amps.
Current draw of a 5 meter RGB strip: 2 amps (or 0.4 amps per meter).
So you could power about 12 x 5 meter RGB strips on this 24 amp controller.
Current draw of a 5 meter RGB strip: 2 amps (or 0.4 amps per meter).
So you could power about 12 x 5 meter RGB strips on this 24 amp controller.
can someone kindly explain the difference between common positive and negative controllers and the difference in purpose. - by Anwar (Cali)
Common positive is when you have 1 positive wire, and 3 negative wires for each of the LED colors (red, blue, green).
Common negative is when you have 1 negative wire, and 3 positive wires for each of the LED colors (red, blue, green).
Most LED products are common positive.
Common negative is when you have 1 negative wire, and 3 positive wires for each of the LED colors (red, blue, green).
Most LED products are common positive.
