RGBW LED Controller
Ideal for RGBW LEDs, dimming and color changing.
LED Controller Kit For RGBW Color Changing | 12-24VDC | Oznium |
Color Changing by Touch Wheel and Buttons
Just touch the color wheel and press the buttons for changing RGBW LED colors.
Just touch the color wheel and press the buttons for changing RGBW LED colors.
Multi-functional Remote Control
Turn ON & OFF the lights, dimming, dynamic color changing modes and static RGBW colors by one remote control.
Turn ON & OFF the lights, dimming, dynamic color changing modes and static RGBW colors by one remote control.
30 Meters Long Distance Control Range
The LED controller can receive signals from the remote up to 30 meters away for open spec.
The LED controller can receive signals from the remote up to 30 meters away for open spec.
Wall Mount Holder
The RGBW controller comes with a wall mount holder. Including the screws & adhesive tape for installation.
The RGBW controller comes with a wall mount holder. Including the screws & adhesive tape for installation.

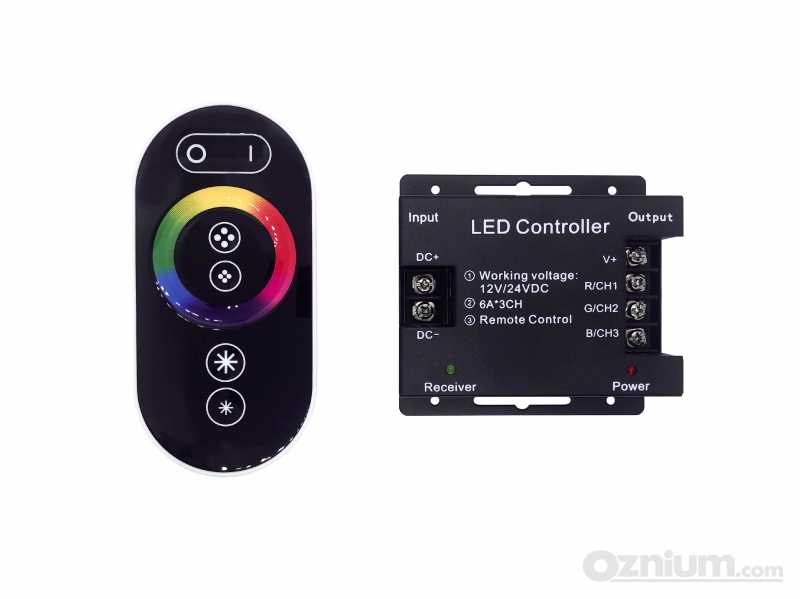

RGBW LED Controller Kit
This LED controller kit is designed to work with any 12-24VDC RGBW LED products ideally, such as Oznium's COB Dotless LED Strip Lights. The remote has a touch wheel and buttons, it's easy to use.RF Remote Control
Comparing with the common infrared (IR) remotes, RF (Radio Frequency) remotes do not have to be aimed at the equipment. You don't need connecting it to the Wi-Fi or Bluetooth, just pick up the remote to chang the LED colors of the lights.Synchronize On Multiple Number Of Device
One controller can match with up to ten remotes, or just use one remote to control two or three controllers. As well as the control range is up to 30 meters for open spec, it's perfect for optimize the home lighting.Wiring Diagram:
RGBW Remote Functions:
For More Functions & Product Details:
Click to Read RGBW LED Controller Kit Instructions ManualRelated Accessories
COB Dotless LED Strip Lights
Dotless, linear lighting effect LED strip lights
MEAN WELL LPV Waterproof AC to DC Adapter
MEAN WELL Waterproof AC to DC adapter
LightBox RGBW Bluetooth Controller
Control your lights with your smartphone
Freedom RGB Controller
Freedom RGB Controller with 18 distinct color changing modes.
Drill Bit
Buy them conveniently from us in various sizes to match the diameter of your LED Bolts: 6mm, 11mm, and 16mm.
Mounting Screw
M2 size, 8mm lengths.
Mounting Clip
Specifically for Ultra Thin LED Light Bar installation
DC Barrel Jack Adapter
These adapters allow you to convert your plug / jack / wires to each other.
Wire Splice Connector
A quick and easy way to splice LED wires together for your lighting project.
RGB 4 Conductor Zip Wire
22 gauge RGB 4 wire power conductor wire.
2 Core Marine Cable
Used for connecting LED strips or pretty much any other LED product, and extending wires.
RGBW LED Controller Kit Photos
RGBW LED Controller Kit Technical Info
| Controller Spec: | |
| Controller's Operating Voltage | 12-24VDC |
| Controller's Output Voltage | The Same With Operating Voltage |
| Max. Output Current | 4 Channels, 4A Per Channel, Max 6A |
| Max. Ouput Power | 192-384W (12-24V) |
| Operating Temperature | -30°C ~ 55°C |
| IP Rating | IP20 |
| Remote Spec: | |
| Remote's Output Signal | RF (2.4 GHz) |
| Remote's Working Voltage | 3VDC (AAA x 2) |
| Working Current | < 5mA |
| Standby Current | < 0.01 mA |
| Standby Time | 2 Year |
| Control Distance | Up to 30m for open spec. |
| Dimming Data: | |
| Dimming Level | 4096 Levels |
| Dimming Range | 0 - 100% |
| Dimming Curve | Logarithmic |
| PWM Frequency | 1000 Hz |
| Others: | |
| Warranty | 5 Years |
| Protection | Reverse Polarity |
