Waterproof DC Voltage Stabilizer
The Stabilizers are available in 2 & 10 Amp versions.
Wide Range of Input Voltage
The input voltage can be low as 5VDC or up to 40VDC. The output voltage from the stabilizer is still rated at 12VDC.
The input voltage can be low as 5VDC or up to 40VDC. The output voltage from the stabilizer is still rated at 12VDC.
IP68 Waterproof
IP68 rated, perfect for vehicles, boats or any outdoor indoor applications.
IP68 rated, perfect for vehicles, boats or any outdoor indoor applications.
Max. Current
Available in 2 Amp & 10 Amp versions.
Available in 2 Amp & 10 Amp versions.
Multifunctional
The stabilizer can be an amplifier, a step-down DC to DC converter or a protector.
The stabilizer can be an amplifier, a step-down DC to DC converter or a protector.
Why Do We Need Voltage Stabilizer
Oznium's LED products primarily operate on 12VDC. However, the 14VDC typically supplied by automotive and marine batteries can overstress LEDs, causing excessive current draw, overheating, and potential damage. A voltage stabilizer protects both LEDs and other devices from voltage fluctuations and resultant harm.
Wide Range of Input Voltage
The output voltage will be rated at 12VDC constantly if the input voltage is within below range:
5-36 VDC (2A Version)
9-40 VDC (10A Version)
IP68 Waterproof
Oznium's voltage stabilizer is IP68 rated, perfect for vehicles, boats or any outdoor indoor applications.
Not Only a Voltage Stabilizer
It can be an amplifier for long distance connection or a step-down DC to DC converter due to the wide range of input voltage. As well as the voltage stabilizer is multifunctional, such as over-current, over-voltage, short circuit, reverse polarity protection etc.
Related Accessories
Dual Intensity Brake Light Driver
Let Your Additional LEDs with Dual Intensity Function
Fade-in Fade-out LED Dimmer
Smooth Fading Effect for Soft Start and Stop
Mini LED Dimmer Knob
With a simple turn of the knob, you can dim down, or brighten up your LEDs
On Off LED Toggle Switch
The toggle style LED switches
Mounting Screw
M2 size, 8mm lengths.
DC Barrel Jack Adapter
These adapters allow you to convert your plug / jack / wires to each other.
Wire Splice Connector
A quick and easy way to splice LED wires together for your lighting project.
2 Core Marine Cable
Used for connecting LED strips or pretty much any other LED product, and extending wires.
18 Gauge Hookup Wire
18 gauge wire is very flexible and is perfect for installing cathodes, LEDs, meteor tubes, or switches.
RGB 4 Conductor Zip Wire
22 gauge RGB 4 wire power conductor wire.

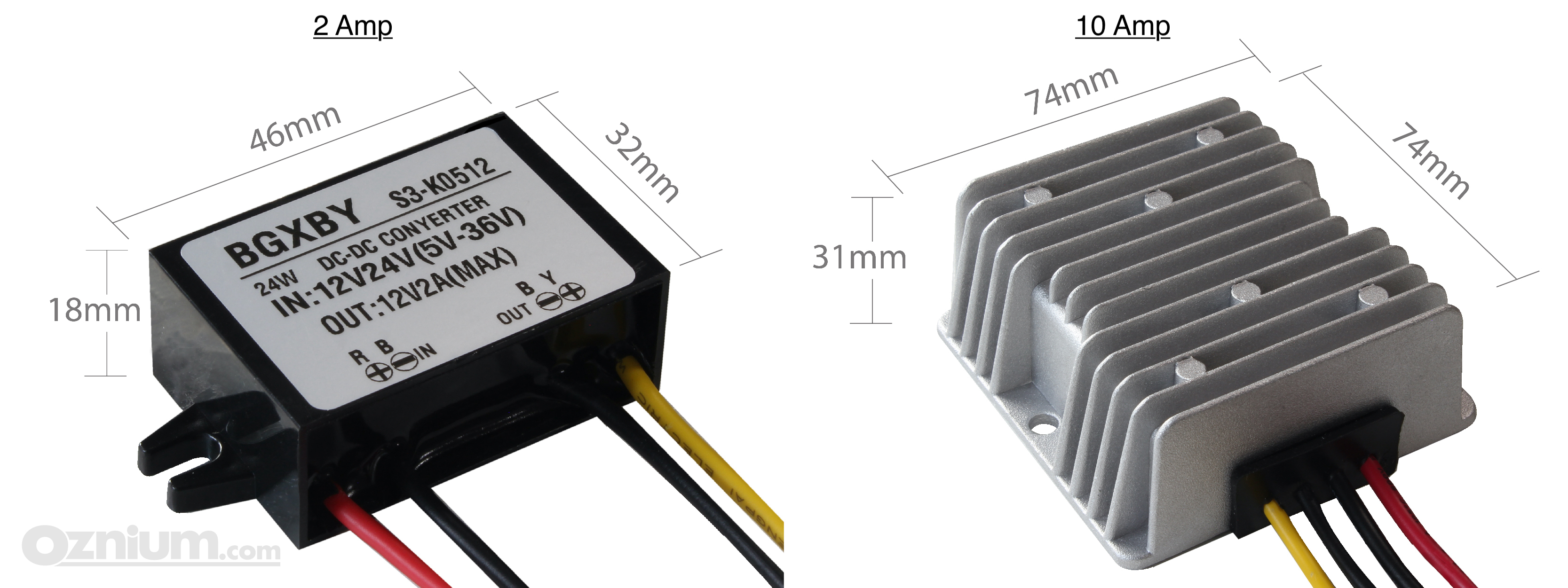

DC Voltage Stabilizer Photos
DC Voltage Stabilizer Technical Info
| Output Voltage | 12 VDC +- 3% |
| IP Rating | IP68 |
| Polarity Sensitive | Yes |
| Short Circuit Protection | Yes |
| Working Temperature | -40 - 85°C |
| Part Number | Operating Voltage | Max. Output Current | Housing Material | Dimension |
|---|---|---|---|---|
| 4806 | 5-36 VDC | 2A | Plastic | 46 x 32 x 16 mm |
| 4807 | 9-40 VDC | 10A | Aluminum | 74 x 74 x 31 mm |
