Waterproof Anti-vandal LED Switch
Our long-awaited fully waterproof version for anti vandal switch is in-stock NOW.

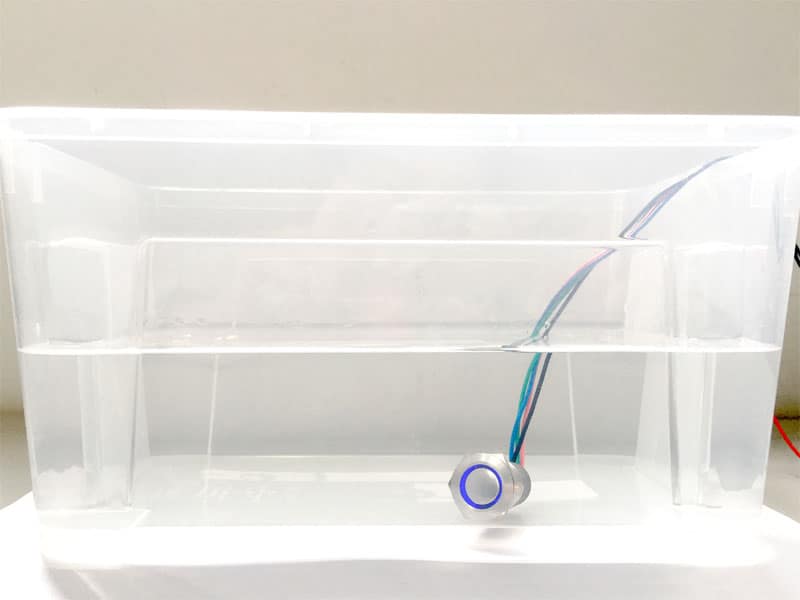

Stainless steel housing with IP68 waterproof rating. It's fully submersible and durable.
It's perfect for anywhere you need to control LEDs in a wet environment.

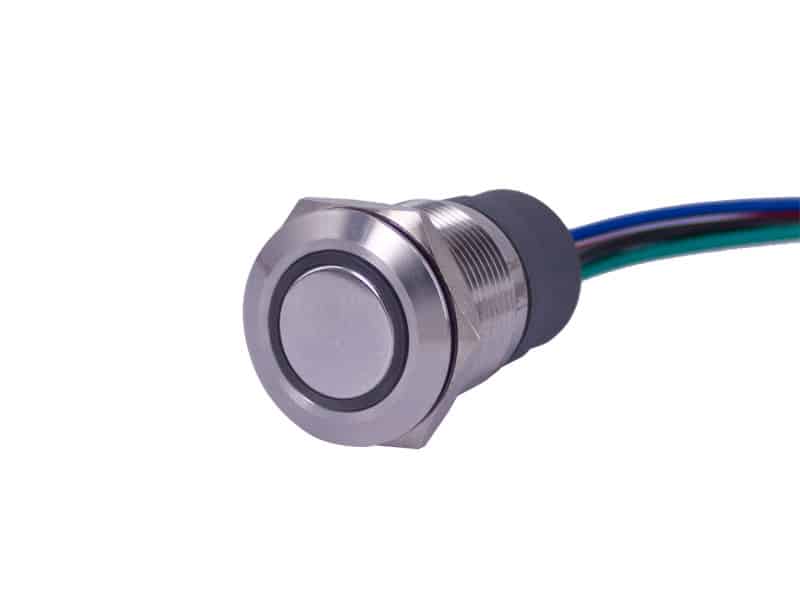

This switch is 22 mm diameter and pre-wired with about 20 inches (49 cm) of wire, and a 12v LED ring lights up when the switch is ON. When the switch is OFF, the LED ring turns off.

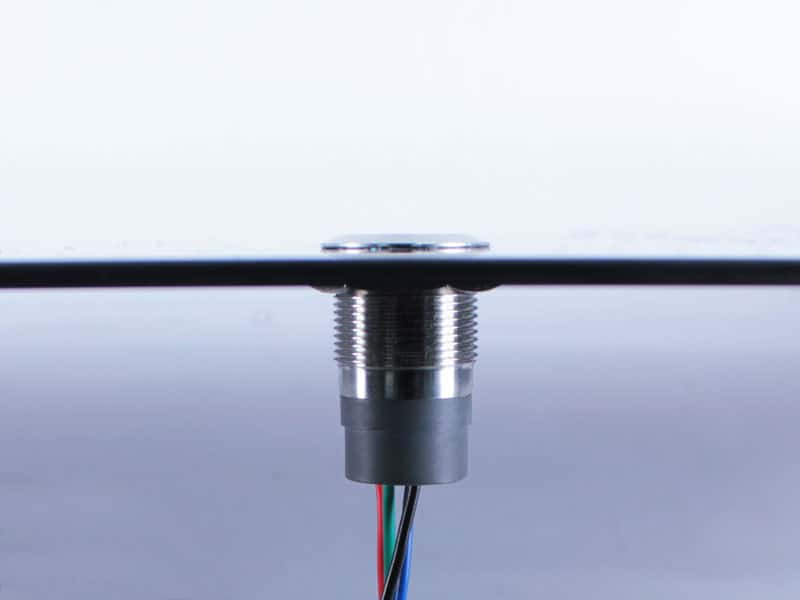

It looks slim and flat when its mount on a panel. It's quite easy to use.

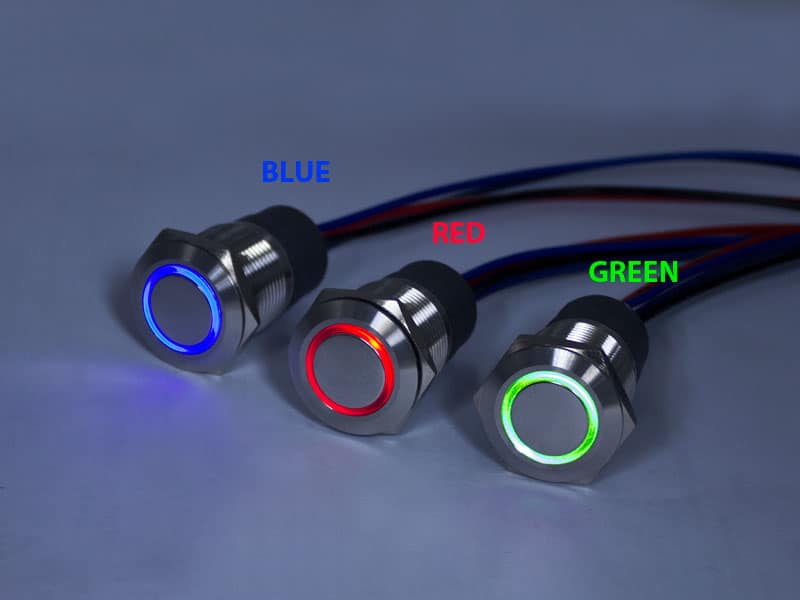

Silver housing with three vibrant LED colors to choose from: GREEN, RED , BLUE.
Want a black housing color for this switch? You can always contact us for enquiries.
Waterproof Anti-vandal LED Switch Technical Info
LED Color | Red / Blue / Green |
IP Rating | IP68 |
Working Voltage | 12V |
Max Current Rating @ 12V | 3A |

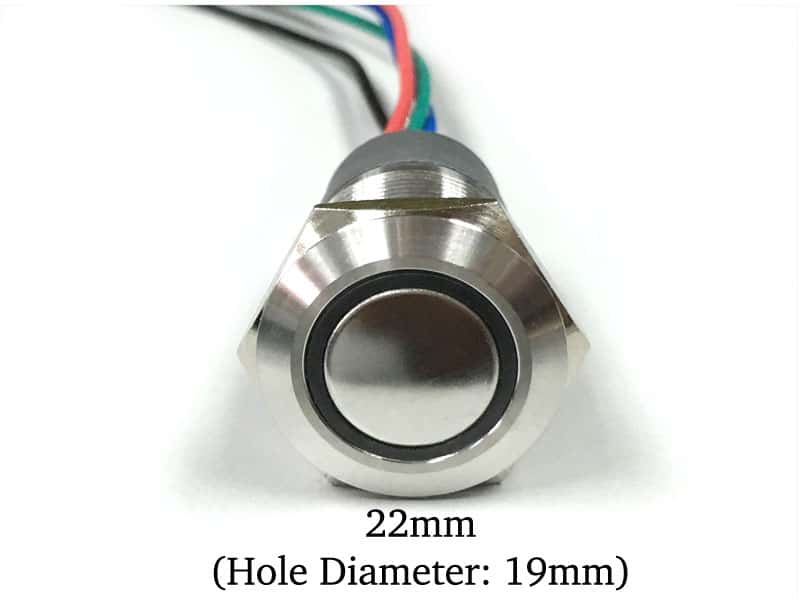

Diameter of Installation hole | 19mm (3/4”) |
Dimension of switch | ⏀22mm x 32mm |
Length of Wires | 490mm |
Wire Gauge | 22 AWG |
Weight | 25 grams |

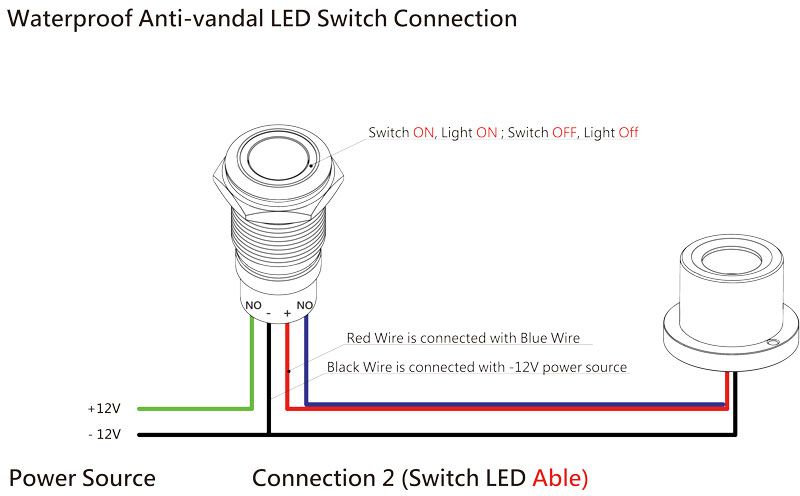

▲How to connect the switch to your power supply & LEDs ?▲
Download connection

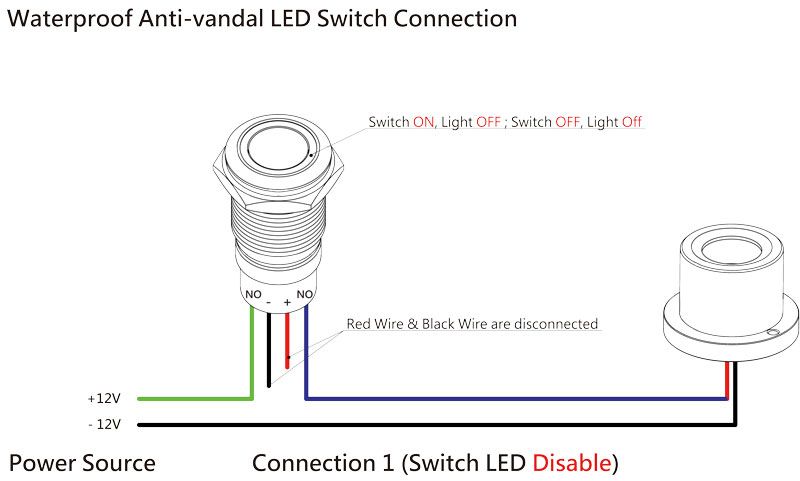

▲If you don't want light up the switch when using ?▲
Download connection
