No need to do wiring by yourself if you have this connector.
These will work with our
- Bi-color Anti-vandal LED Switch
Note: Does NOT work with our single color Anti-vandal Switch
Bi-color Anti-vandal LED Switch Connector

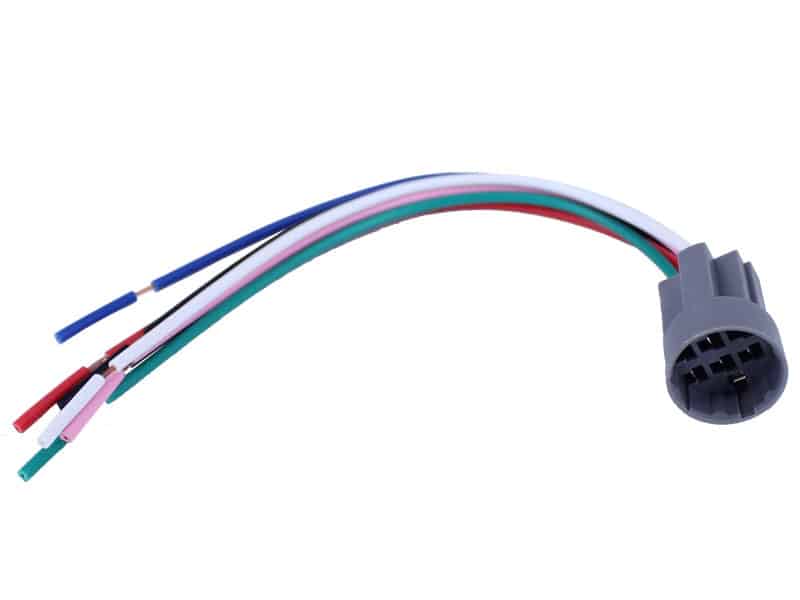

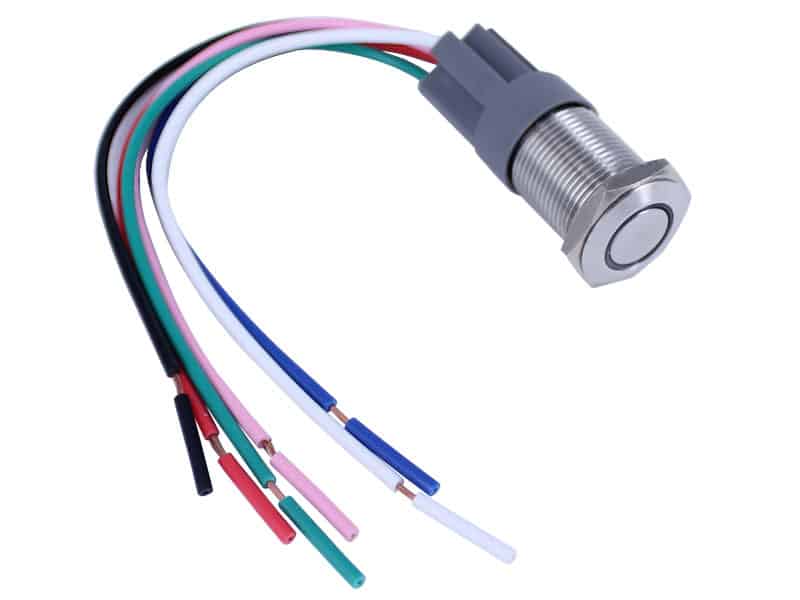

Bi-color Anti-vandal LED Switch Connector Photos
Bi-color Anti-vandal LED Switch Connector Technical Info
Wire length: 130mmWire gauge: 24AWG
Connector's wires
Blue: Leave it disconnected
Green: to hot lead from power source
White: to hot lead from power source
Pink or Orange: to ground from power source
Black: to hot lead on led
Red: to hot lead on led
Ground from led connects to ground from power source.
Customer questions & answers
Is it possible to get a sample before we bulk order 500 units? - by Ekin (Sydney Australia)
Sorry, we don't have samples but you can order 1 for testing. We don't have minimum orders.
