5 Pin 40 Amp Relay

- 30/40 amp relay
- 5-pin single pole, double throw (SPDT) so contacts can be wired for normally closed or normally open operation
- Switched with 9-15VDC
- Approximately 100mA current draw - Measures 1x1x1 inches square, posts extend out 1/2 inch.

Use with optional relay harness, or female crimp connectors

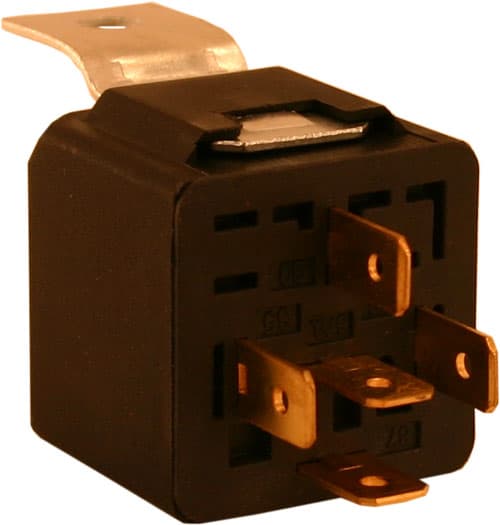

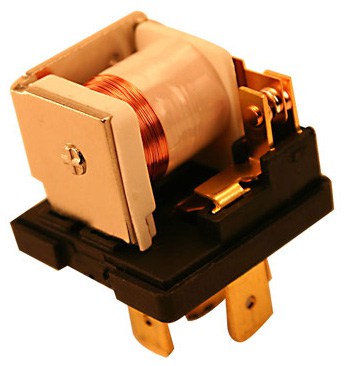

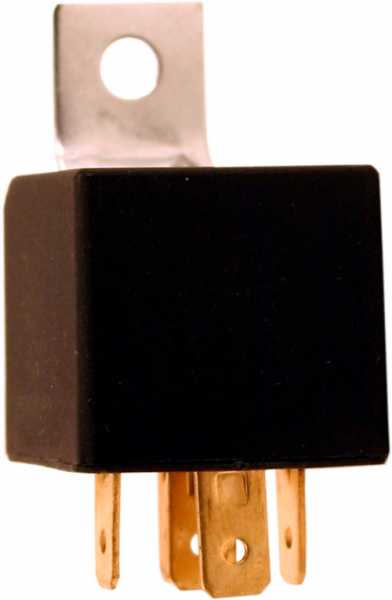

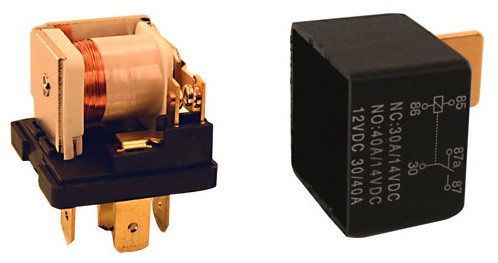

5 Pin 40 Amp Relay Photos

In stock

Quantity

$3.29

Want it delivered Friday, November 22? Order it in the next 6 hours and 38 minutes, and choose One-Day Shipping at checkout.

Customer questions & answers

Question:

Is it necessary to fuse a 12 volt wire going to a toggle switch to a 30amp relay?

Answer:

Yes, you should always fuse a wire coming from the battery, regardless of where it's going.

Question:

I have an amplifier fan that draws less than 1 amp of current. Is a relay necessary or should I just hook it up to a switch? - by Luis

Answer:

I see no reason to use a relay in this case. I'd simply use a switch, as long as the switch is capable of handling 1 amp of current.

Question:

which pin would generally be common contact, open contact, and close contact - by Kory (vancouver, wa)

Answer:

Please accept my apologies, but I don't really understand the question.

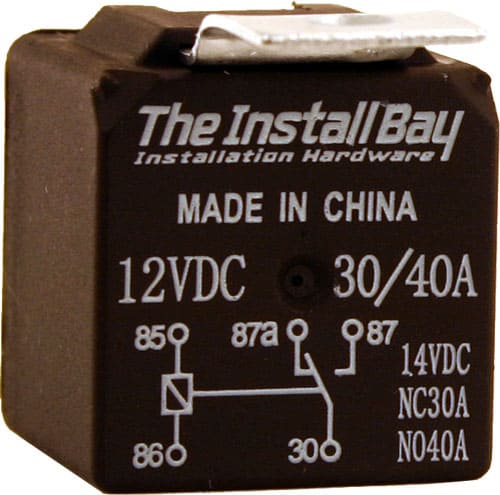

A relay basically works like this:
When the coil (Pins 85 and 86) is energized, Pins 30 and 87 will be connected.
When the coil is not energized, Pins 30 and 87a will be connected.

See more answered questions (13)
